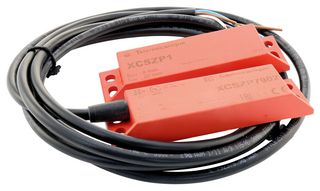

XCSDMP7902
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, CABLE, IP66, IP67
XCSDMP7902
ActiveSCHNEIDER ELECTRIC
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, CABLE, IP66, IP67
Description
General part information
XCSDMP7902
SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NC, CABLE, IP66, IP67
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSDMP7902 |
|---|---|
| Actuator Type | Non-Contact |
| Approval Agency | UL, CSA |
| Circuit | DPST-NC |
| Current Rating | 100 mA |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Must Operate (Length) | 8 mm |
| Must Release | 20 mm |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Cable Leads |
| Type | Magnetic |
| Voltage Rating | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
