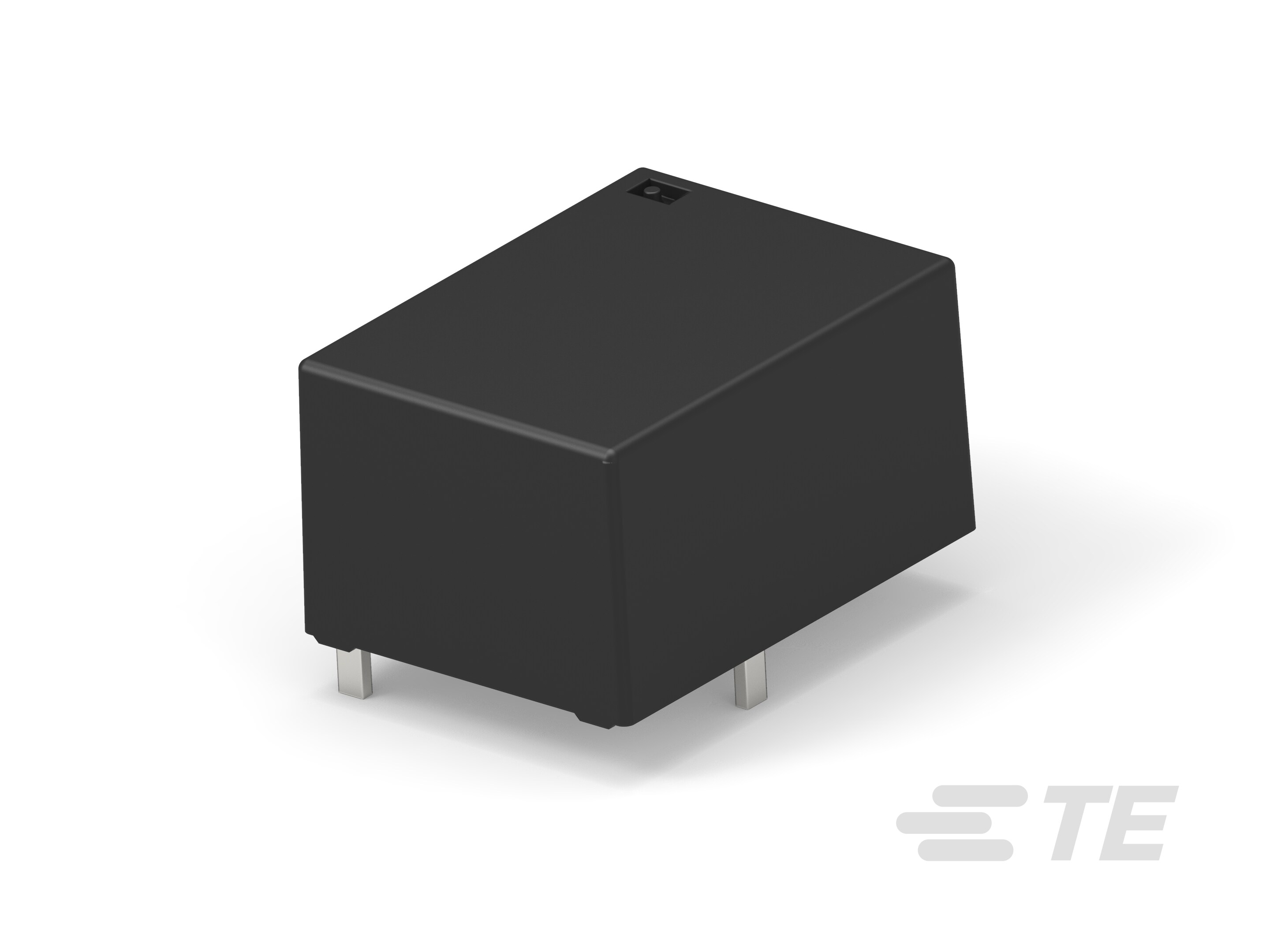

Specification	T9GV5L14-12WG

Approval Agency	CQC, VDE, cURus
Coil Current	0.075 A
Coil Type	Non Latching
Coil Voltage	12 VAC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A
Load - Max Switching (Apparent Power)	9600 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 V
Operate Time	15 ms
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	22 ms
Seal Rating	Flux Protection, Sealed
Switching Voltage AC (Max)	480 VAC
Termination Style	PC Pin
