350491-1
ActiveTE Connectivity AMP Connectors

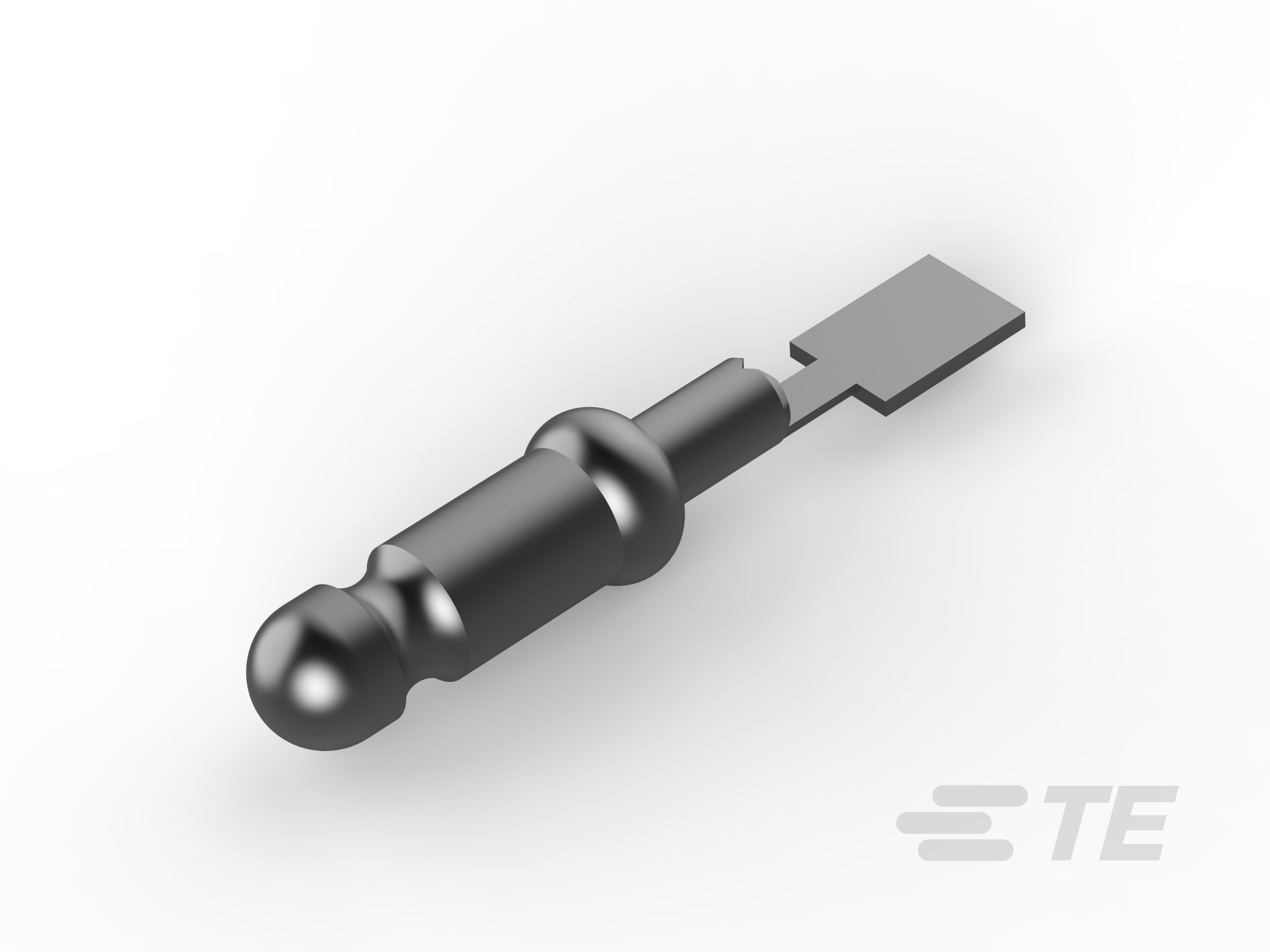

CONN PC PIN CIRC 0.093DIA TIN
350491-1
ActiveTE Connectivity AMP Connectors
CONN PC PIN CIRC 0.093DIA TIN
Description
General part information
350491-1
Receptacle, 1.7 – 1.85 mm [.067 – .073 in] PCB Hole, Through Hole - Solder, Pre-Tin Plating, Loose Piece, PCB Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 350491-1 |
|---|---|
| Board Thickness | 0.062 in |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Flange Diameter | 0.115 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.245 in |
| Length - Overall | 0.405 in |
| Mounting Hole Diameter (Max) | 0.073 in |
| Mounting Hole Diameter (Min) | 0.067 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.093 in |
| Terminal Style | Flanged |
| Terminal Type | Single Post |
| Termination | Clinch Fit |
