Specification	CGA6M3X7S2A335K200AB

Applications	Automotive
Capacitance	3.3 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

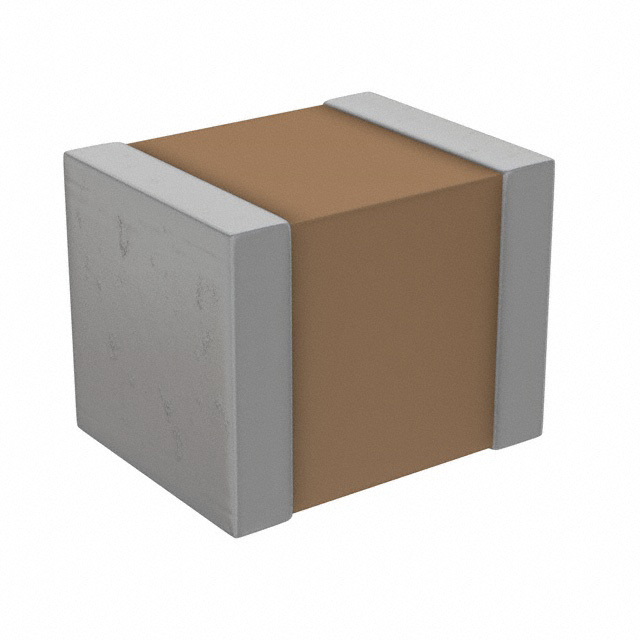

Package / Case	1210 (3225 Metric)
Ratings	AEC-Q200
Size / Dimension Length	0.126 in
Size / Dimension Width	0.098 in
Temperature Coefficient	X7S
Thickness (Max)	0.087 in
Tolerance	10 %
Voltage - Rated	100 VAC/DC

CGA Series

...

Part	Mounting Type	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Ratings	Capacitance	Applications	Tolerance	Thickness (Max)	Package / Case	Size / Dimension Width	Size / Dimension Length	Features
TDK Corporation CGA5L3X7R1C475M160AB	MLCC Surface Mount	X7R	125 °C	-55 °C	16 V	AEC-Q200	4.7 µF	Automotive	20 %	0.075 in	1206 (3216 Metric)	0.063 in	0.126 in
TDK Corporation CGA2B3X7R1V333K050BB	MLCC Surface Mount	X7R	125 °C	-55 °C	35 V	AEC-Q200	0.033 µF	Automotive	10 %	0.022 in	0402 (1005 Metric)	0.02 in	0.039 in
TDK Corporation CGA3E2C0G2A122J080AE	MLCC Surface Mount	C0G NP0	125 °C	-55 °C	100 VAC/DC	AEC-Q200	1200 pF	Automotive Boardflex Sensitive	5 %	0.037 in	0603 (1608 Metric)	0.031 in	0.063 in	Soft Termination
TDK Corporation CGA3E2NP01H331J080AA	MLCC Surface Mount	C0G NP0	150 °C	-55 °C	50 V	AEC-Q200	330 pF	Automotive	5 %	0.035 in	0603 (1608 Metric)	0.031 in	0.063 in	High Temperature
TDK Corporation CGA9P4X7T2W105M250KE	MLCC Surface Mount	X7T	125 °C	-55 °C	450 V	AEC-Q200	1 µF	Automotive Boardflex Sensitive	20 %	0.11 in	2220 (5750 Metric)	0.197 in	0.224 in	Soft Termination
TDK Corporation CGA2B3X7S1A474K050BB	MLCC Surface Mount	X7S	125 °C	-55 °C	10 V	AEC-Q200	0.47 µF	Automotive	10 %	0.022 in	0402 (1005 Metric)	0.02 in	0.039 in
TDK Corporation CGA6M2X7R2A474M200AE	MLCC Surface Mount	X7R	125 °C	-55 °C	100 VAC/DC	AEC-Q200	0.47 µF	Automotive Boardflex Sensitive	20 %	0.091 in	1210 (3225 Metric)	0.098 in	0.126 in	Soft Termination
TDK Corporation CGA2B2NP01H4R7C050BA	MLCC Surface Mount	C0G NP0	150 °C	-55 °C	50 V	AEC-Q200	4.7 pF	Automotive	0.25 pF	0.022 in	0402 (1005 Metric)	0.02 in	0.039 in	High Temperature
TDK Corporation CGA3E3C0G2E471J080AA	MLCC Surface Mount	C0G NP0	125 °C	-55 °C	250 V	AEC-Q200	470 pF	Automotive	5 %	0.035 in	0603 (1608 Metric)	0.031 in	0.063 in
TDK Corporation CGA3E3X5R0J335M080AB	MLCC Surface Mount	X5R	85 °C	-55 °C	6.3 V	AEC-Q200	3.3 µF	Automotive	20 %	0.035 in	0603 (1608 Metric)	0.031 in	0.063 in
