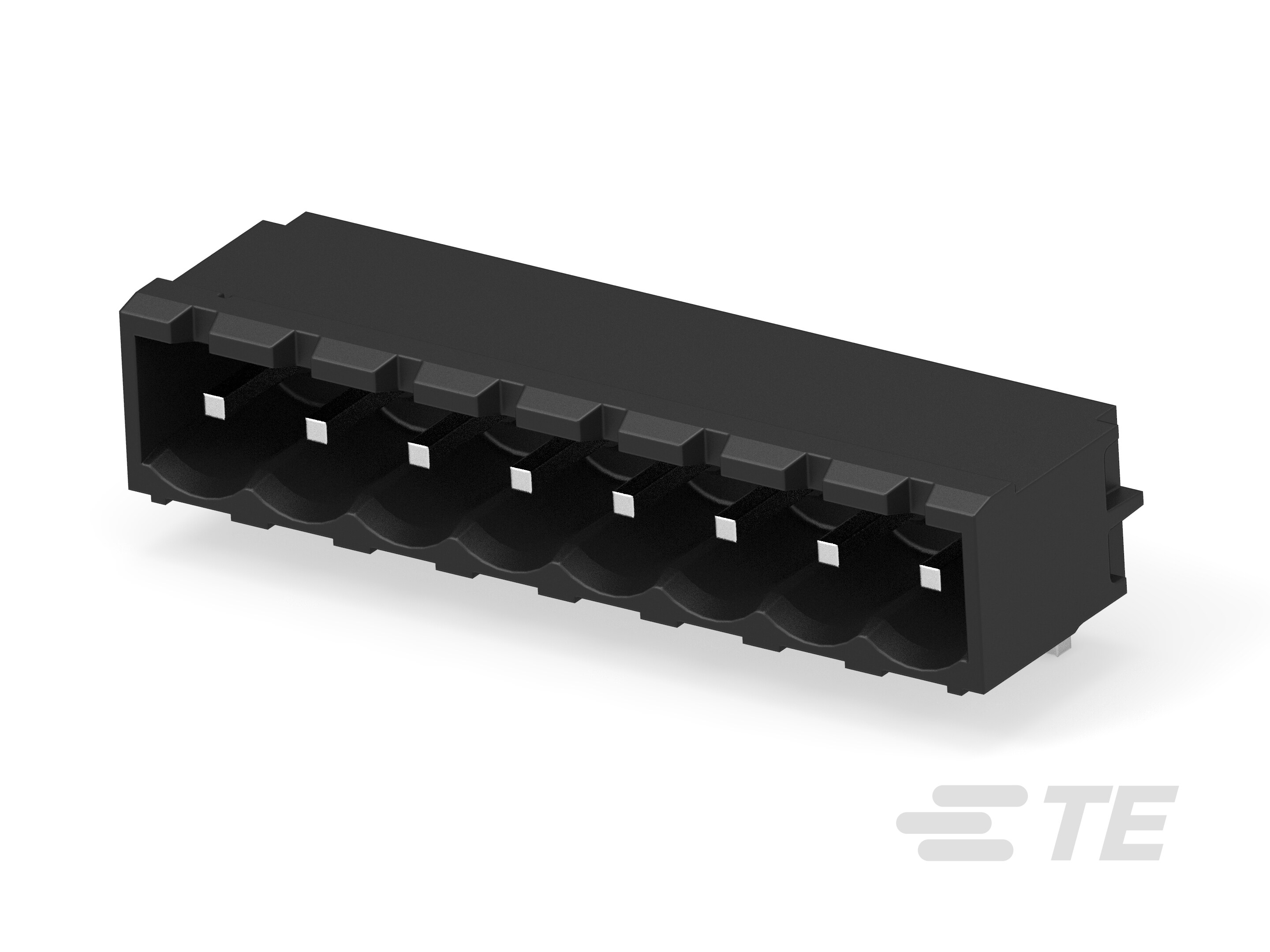

8POS HDR 90 DEG,HT,5.00MM PITCH,TL 2.6MM-2342079-8

2342079-8

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 8POS HDR 90 DEG,HT 5.00MM PIT.,TL 2.6MM

Find alt
8POS HDR 90 DEG,HT,5.00MM PITCH,TL 2.6MM-2342079-8

2342079-8

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 8POS HDR 90 DEG,HT 5.00MM PIT.,TL 2.6MM

Find alt

Description

General part information

2342079-8

8 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification2342079-8
ColorBlack
Contact Mating FinishTin
Current - UL11 A
FeaturesHigh Temp Housing
Header OrientationRight Angle
Header Orientation Angle90 °
Mounting TypeThrough Hole
Number of Levels1
Number of Positions8
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.197 in
Positions Per Level8
Termination StyleSolder
TypeShrouded (4 Side), Male Pins, Header
Voltage - UL300 V
