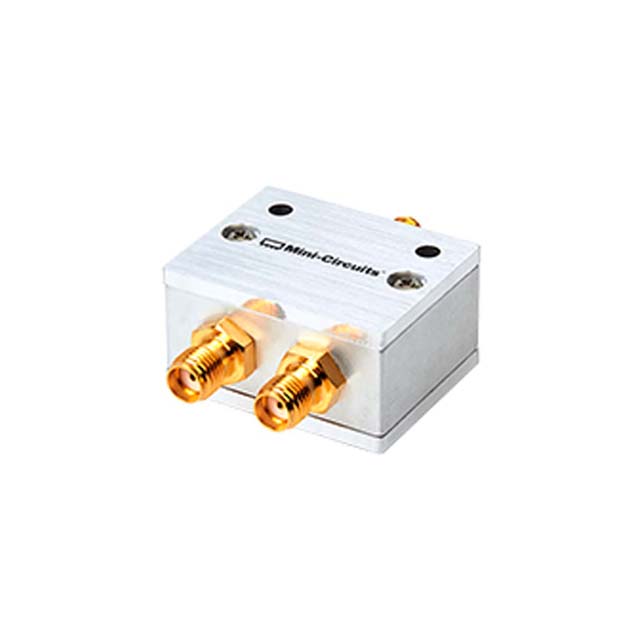

Z99SC-62-S+
ActiveMini-Circuits
PWR SPLTR CMBD / SMA ROHS
Z99SC-62-S+
ActiveMini-Circuits
PWR SPLTR CMBD / SMA ROHS
Description
General part information
Z99SC-62-S+
RF Power Divider 500 kHz ~ 600 MHz Isolation (Min) 18dB, 1.6 VSWR (Max), 2° Imbalance (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | Z99SC-62-S+ |
|---|---|
| Frequency (Max) | 600 MHz |
| Frequency (Min) | 500 kHz |
| Imbalance (Max) | 2 ° |
| Insertion Loss | 0.7 dB |
| Isolation (Min) | 18 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.73 in |
| Size / Dimension Length | 1.26 in |
| Size / Dimension Width | 1 in |
| VSWR (Max) | 1.6 |
