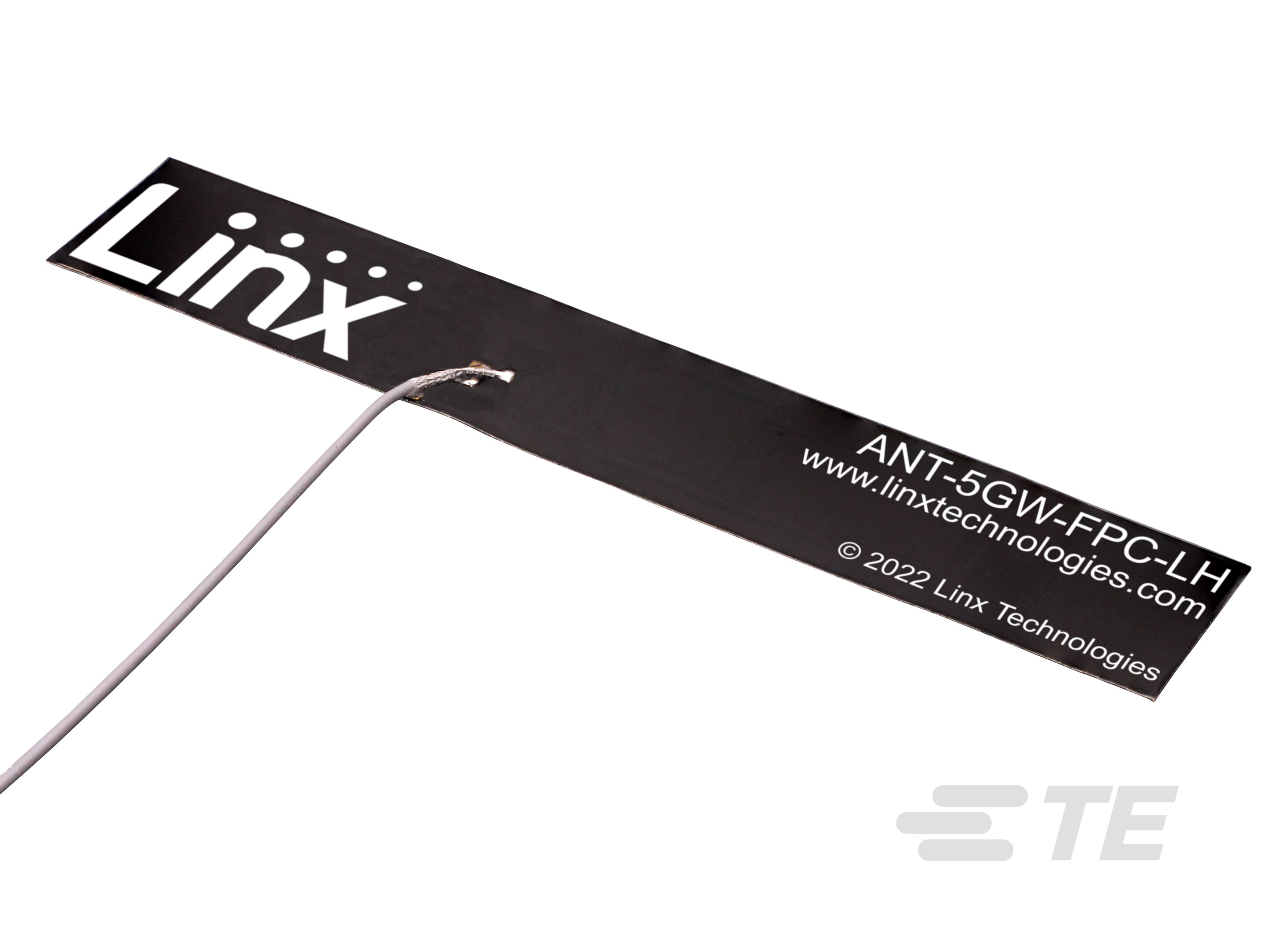

Specification	ANT-5GW-FPC-LH200M4

Antenna Type	Flat Patch
Applications	5G, 4G, LTE, 3G, 2G
Features	Cable, 200mm
Frequency (Center/Band)	1.593GHz, 750.5MHz, 3.75GHz, 1.175GHz, 657.5MHz, 1.947GHz, 2.495GHz, 4.7GHz, 842.5MHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	698 MHz
Frequency Range (Band 1) Minimum	617 MHz
Frequency Range (Band 2) Maximum	803 MHz
Frequency Range (Band 2) Minimum	698 MHz
Frequency Range (Band 3) Maximum	894 MHz
Frequency Range (Band 3) Minimum	791 MHz
Frequency Range (Band 4) Maximum	1.518 GHz
Frequency Range (Band 4) Minimum	832 MHz
Frequency Range (Band 5) Maximum	1.661 GHz
Frequency Range (Band 5) Minimum	1.525 GHz
Frequency Range (Band 6) Maximum	2.2 GHz
Frequency Range (Band 6) Minimum	1.695 GHz
Frequency Range (Band 7) Maximum	2.69 GHz
Frequency Range (Band 7) Minimum	2.3 GHz
Frequency Range (Band 8) Maximum	4.2 GHz
Frequency Range (Band 8) Minimum	3.3 GHz
Frequency Range (Band 9) Maximum	5 GHz
Frequency Range (Band 9) Minimum	4.4 GHz
Gain	6 dBi, 5 dBi, 6.2 dBi, 5.5 dBi, 7 dBi, 5.1 dBi, 5.2 dBi, 6.8 dBi
Height (Max)	0.004 in
Mounting Type	Adhesive
Number of Bands	9
Power - Max	2 VA
RF Family/Standard	Cellular
Termination	MHF4
VSWR	1.7, 2, 4.7, 2.5, 2.7, 1.8, 1.9, 1.6
