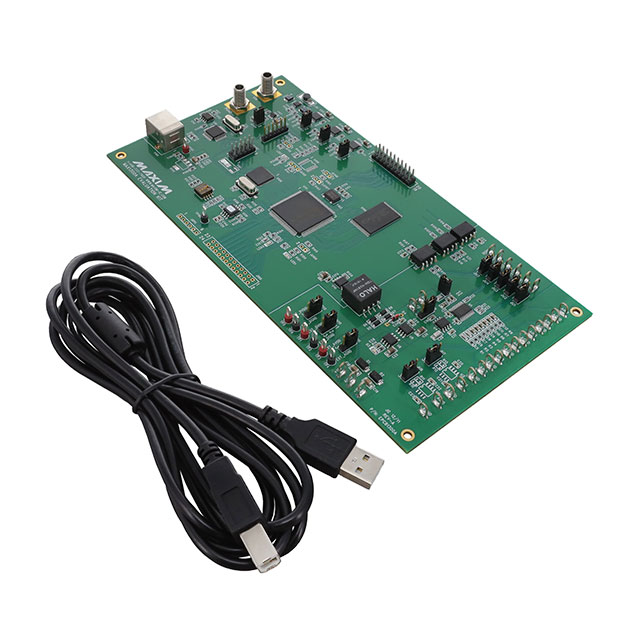

MAX1300AEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX1300
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX1300AEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
KIT EVALUATION FOR MAX1300
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX1300AEVKIT# | MAX1300 Series |
|---|---|---|
| Architecture | - | SAR |
| Configuration | - | MUX-PGA-S/H-ADC |
| Data Interface | SPI | SPI |
| Features | - | PGA |
| Input Type | - | Single Ended, Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 16 | 16 |
| Number of Inputs | - | 4 - 8 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-TSSOP |
| Package / Case | - | 0.173 - 4.4 in |
| Ratio - S/H:ADC | - | 1:1 |
| Reference Type | - | External, Internal |
| Sampling Rate (Per Second) | 115k | 115k |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-TSSOP |
| Utilized IC / Part | MAX1300A | MAX1300A |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 5 V |
MAX1300 Series
IC ADC 16BIT SAR 24TSSOP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Data Interface | Reference Type | Number of A/D Converters | Number of Bits | Sampling Rate (Per Second) | Number of Inputs | Supplier Device Package | Voltage - Supply, Digital | Features | Mounting Type | Architecture | Ratio - S/H:ADC | Package / Case | Package / Case | Input Type | Voltage - Supply, Analog | Configuration | Utilized IC / Part | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX1300BEUG+T | 85 °C | -40 °C | SPI | External, Internal | 1 | 16 | 115k | 4, 8 | 24-TSSOP | 5 V | PGA | Surface Mount | SAR | 1:1 | 24-TSSOP | 0.173 in, 4.4 mm | Differential, Single Ended | 5 V | MUX-PGA-S/H-ADC | ||
Analog Devices Inc./Maxim Integrated MAX1300BEUG+ | 85 °C | -40 °C | SPI | External, Internal | 1 | 16 | 115k | 4, 8 | 24-TSSOP | 5 V | PGA | Surface Mount | SAR | 1:1 | 24-TSSOP | 0.173 in, 4.4 mm | Differential, Single Ended | 5 V | MUX-PGA-S/H-ADC | ||
Analog Devices Inc./Maxim Integrated MAX1300AEUG+T | 85 °C | -40 °C | SPI | External, Internal | 1 | 16 | 115k | 4, 8 | 24-TSSOP | 5 V | PGA | Surface Mount | SAR | 1:1 | 24-TSSOP | 0.173 in, 4.4 mm | Differential, Single Ended | 5 V | MUX-PGA-S/H-ADC | ||
Analog Devices Inc./Maxim Integrated MAX1300AEVKIT# | SPI | 1 | 16 | 115k | MAX1300A | Board(s) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 120.24 | |
Description
General part information
MAX1300 Series
MAX1300A - 16 Bit 115k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
