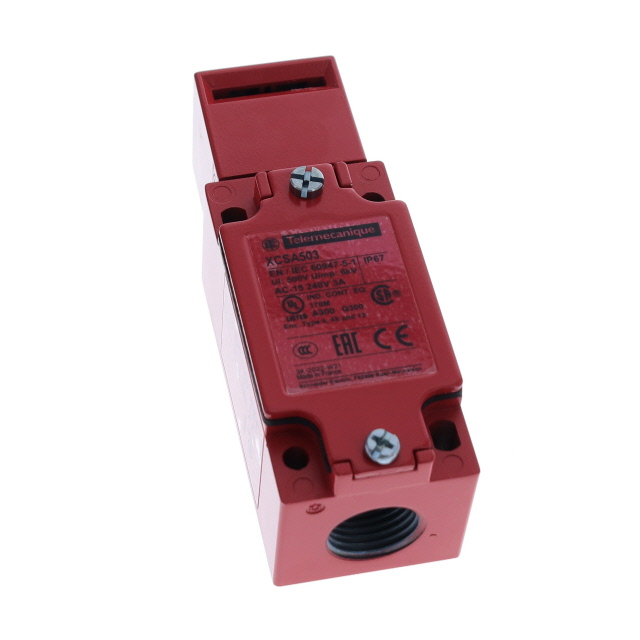

XCSA503

XCSA503

Active
SCHNEIDER ELECTRIC

SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NO, SPST-NC, SCREW, 120 V, 6 A

Find alt
XCSA503

XCSA503

Active
SCHNEIDER ELECTRIC

SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NO, SPST-NC, SCREW, 120 V, 6 A

Find alt

Description

General part information

XCSA503

SAFETY INTERLOCK SWITCH, PREVENTA XCS SERIES, DPST-NO, SPST-NC, SCREW, 120 V, 6 A

Technical Specifications

Parameters and characteristics for this part

SpecificationXCSA503
Actuator TypePanel Disconnect
Approval AgencyUL, CSA
Circuit3PST-2NO/1NC
Current Rating550 mA, 6 A
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Termination StyleScrew Terminal
TypeNon-Locking
Voltage Rating (AC)120 VAC
Voltage Rating (DC)125 VDC
