Description
General part information

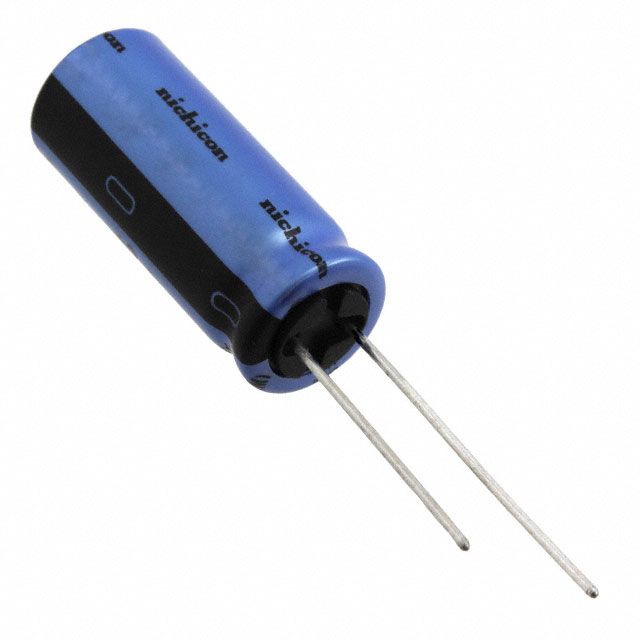

UKT1E222MHD
2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UKT1E222MHD |
|---|---|
| Applications | Audio |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 1.24 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ratings | AEC-Q200 |
| Ripple Current | 1.38 A, 1.2 A |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
