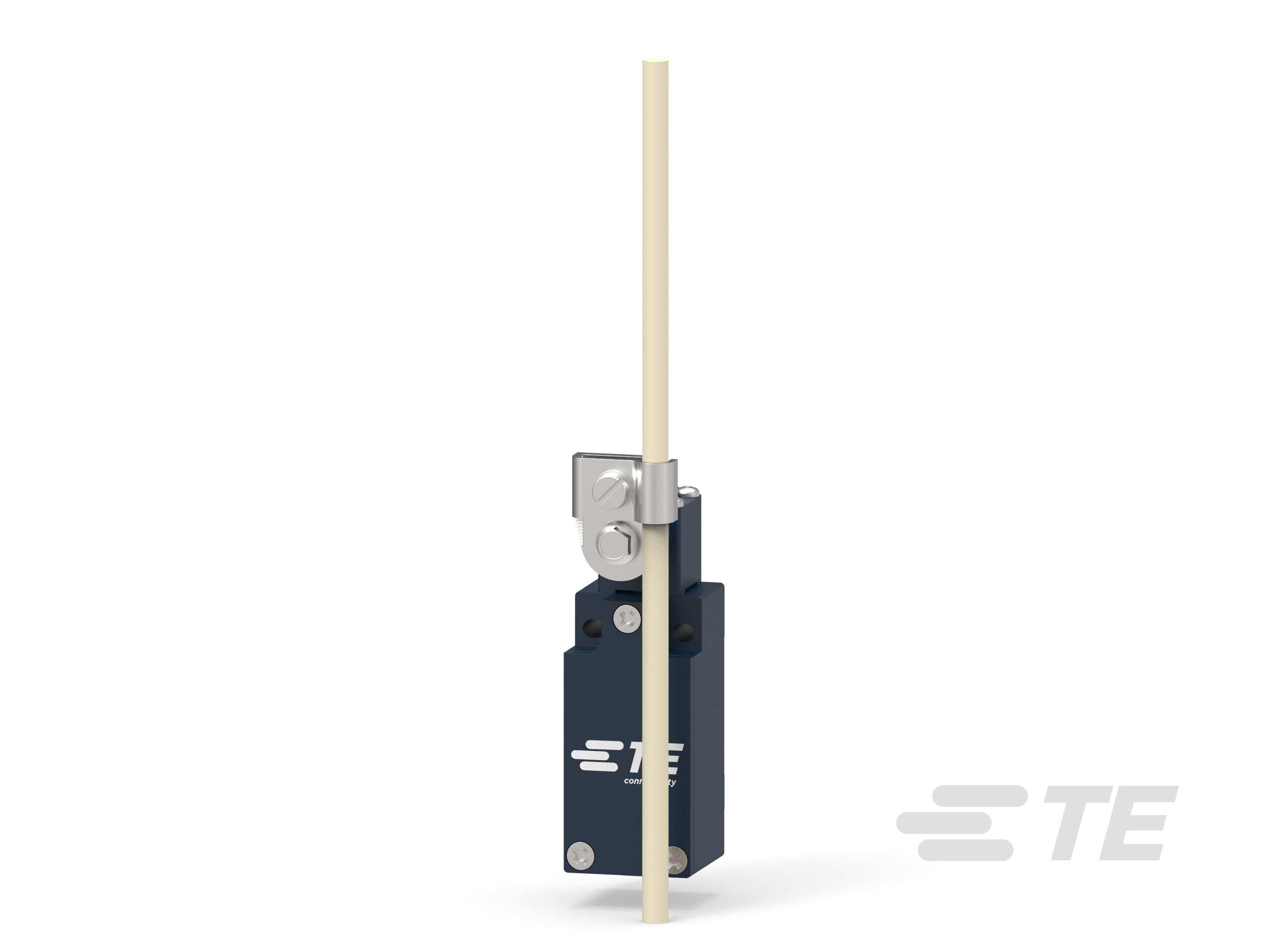

Specification	TLSZLS0215PB

Actuator Type	Adjustable Rod, Side Rotary
Circuit	DPST-NC
Current Rating	4 A, 1 A
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Mechanical Life (Cycles)	20000000 Cycles
Mounting Type	Chassis Mount
Operating Force	20 gf
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-On
Termination Style	Screw Terminal
Voltage Rating - AC	240 V
Voltage Rating - DC	24 V

ALCOSWITCH TLS Series

Part	Operating Force	Mechanical Life (Cycles)	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating - AC	Circuit	Termination Style	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating - DC	Current Rating	Actuator Type
TE Connectivity AMP Connectors TLSTNS0206PR	20 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NO/NC	Screw Terminal	Off-Mom On-Mom	-30 °C	80 °C	24 V	1 A 4 A	Lever Roller
TE Connectivity AMP Connectors TLSZNS1103SD	918 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NO/NC	Screw Terminal	Off-Mom On-Mom	-30 °C	80 °C	24 V	1 A 4 A	Round (Pin Plunger)
TE Connectivity AMP Connectors TLSZLS0211PB	20 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NC	Screw Terminal	On-On	-30 °C	80 °C	24 V	1 A 4 A	Lever Roller
TE Connectivity AMP Connectors TLSZLS1102PD	918 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NO/NC	Screw Terminal	Off-On On-Off	-30 °C	80 °C	24 V	1 A 4 A	Roller Plunger
TE Connectivity AMP Connectors TLSTNS0214PB	20 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NC	Screw Terminal	On-Mom	-30 °C	80 °C	24 V	1 A 4 A	Adjustable Roller Side Rotary
TE Connectivity AMP Connectors TLSZNS1113PB	20 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NO/NC	Screw Terminal	Off-Mom On-Mom	-30 °C	80 °C	24 V	1 A 4 A	Adjustable Roller Side Rotary
TE Connectivity AMP Connectors TLSZLS1103SD	918 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NO/NC	Screw Terminal	Off-On On-Off	-30 °C	80 °C	24 V	1 A 4 A	Round (Pin Plunger)
TE Connectivity AMP Connectors TLSTNS0215PB	20 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NC	Screw Terminal	On-Mom	-30 °C	80 °C	24 V	1 A 4 A	Adjustable Rod Side Rotary
TE Connectivity AMP Connectors TLSTNS0204PD	918 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NC	Screw Terminal	On-Mom	-30 °C	80 °C	24 V	1 A 4 A	Roller Plunger
TE Connectivity AMP Connectors TLSTLS1115PB	20 gf	20000000 Cycles	Chassis Mount	Dust Tight Water Resistant Waterproof	IP65 IP67	240 V	DPST-NO/NC	Screw Terminal	Off-On On-Off	-30 °C	80 °C	24 V	1 A 4 A	Adjustable Rod Side Rotary
