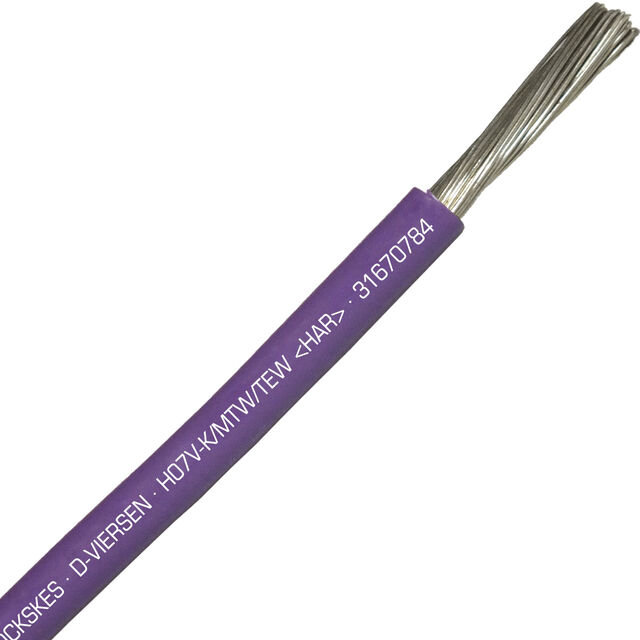

31670784
ActiveSAB North America
HOOK-UP STRND 14AWG VIO QTY1=1'
31670784
ActiveSAB North America
HOOK-UP STRND 14AWG VIO QTY1=1'
Description
General part information
31670784
14 AWG Hook-Up Wire 46/30 Violet 600V Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 31670784 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 46 |
| Conductor Strand Gauge | 30 AWG |
| Jacket (Insulation) Diameter | 0.146 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Violet |
| Length | Enter Number of Feet in Order Quantity |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | UL, Style, 1015 |
| Voltage | 600 V |
| Wire Gauge | 14 AWG |
