CBQ1-SALMGT-SALRF3GT-36IN-6O
ActiveLighthorse Technologies, Inc
CBL ASSY SMA-RPSMA JACK-PLUG 36"
CBQ1-SALMGT-SALRF3GT-36IN-6O
ActiveLighthorse Technologies, Inc
CBL ASSY SMA-RPSMA JACK-PLUG 36"
Description
General part information
CBQ1-SALMGT-SALRF3GT-36IN-6O

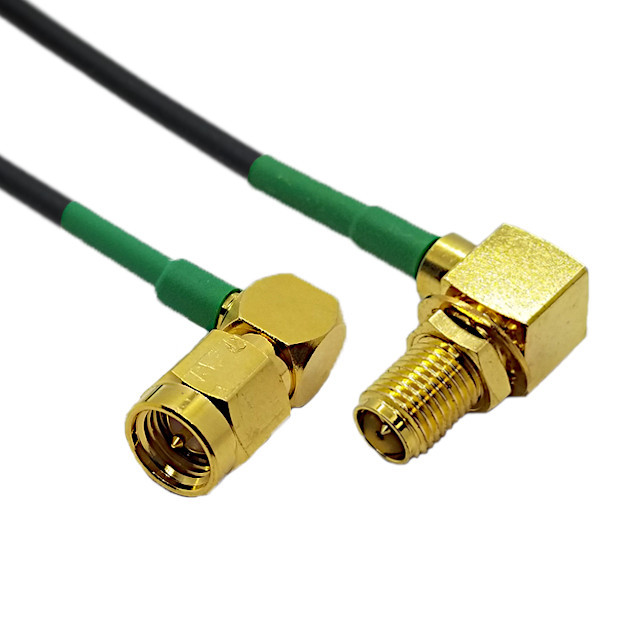

Cable Assembly Coaxial RP-SMA to SMA LMR 100 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBQ1-SALMGT-SALRF3GT-36IN-6O |
|---|---|
| 1st Connector | RP-SMA Jack, Right Angle |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 100 |
| Color | Black |
| Features | Shielded, Opposite Orientation |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA, SMA |
