SDWL1608CP82NGSTF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 82NH 510MA 460MOHM SMD
SDWL1608CP82NGSTF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 82NH 510MA 460MOHM SMD
Description
General part information
SDWL1608CP82NGSTF

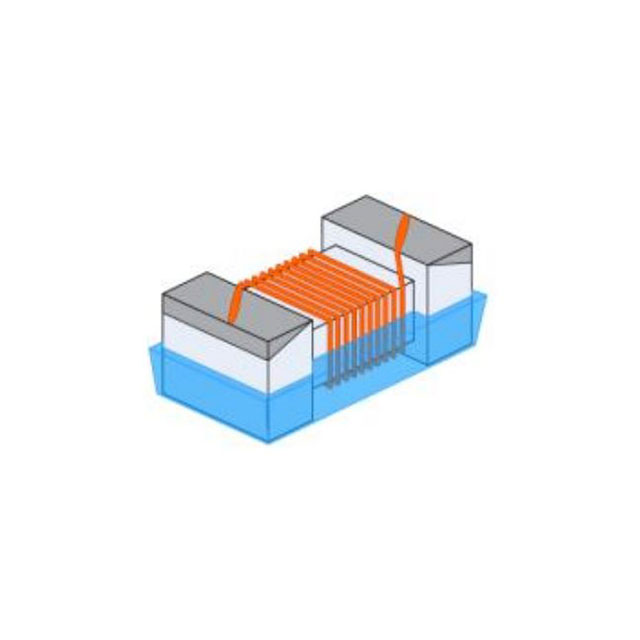

82 nH Unshielded Drum Core, Wirewound Inductor 510 mA 460mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SDWL1608CP82NGSTF |
|---|---|
| Current Rating | 0.51 A |
| DC Resistance (DCR) (Max) | 460 mOhm |
| Frequency - Self Resonant | 1.8 GHz |
| Height - Seated (Max) | 0.043 in |
| Inductance | 82 nH |
| Inductance Frequency - Test | 150 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Q | 45 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.067 in |
| Size / Dimension Width | 0.043 in |
| Tolerance | 2 % |
| Type | Drum Core, Wirewound |
