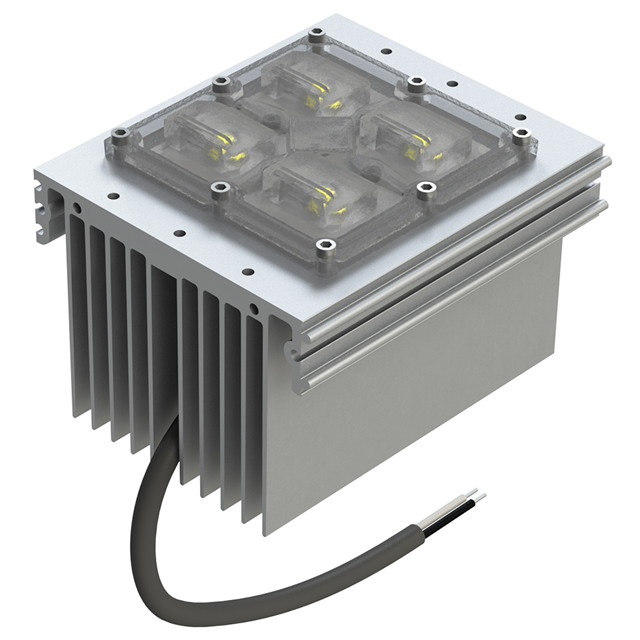

MS22T1-C22-5770-M-1-00

Active

New Energy

LED MOD XHP50.2 CL WHT SQ 5700K

Search across all available documentation for this part.

Active

New Energy

LED MOD XHP50.2 CL WHT SQ 5700K

Technical Specifications

Parameters and characteristics for this part

Specification	MS22T1-C22-5770-M-1-00

CCT (K)	5700 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	70
Features	IP67
Lens Type	Domed
Lumens/Watt @ Current - Test	141 lm/W
Luminous Flux @ Current/Temperature	4500 lm
Size / Dimension [x]	5 in
Size / Dimension [y]	5 "
Type	LED Module
Voltage - Forward (Vf) (Typ)	45.5 V

LED MOD XHP50.2 CL WHT SQ 5700K

Part	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Lens Type	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Configuration	Type	Features	CCT (K)	Luminous Flux @ Current/Temperature
New Energy MS22T1-C22-5770-M-1-00	5 "	5 in	45.5 V	Cool, White	Domed	141 lm/W	70	Square	LED Module	IP67	5700 K	4500 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module XHP50.2 White, Cool Square
