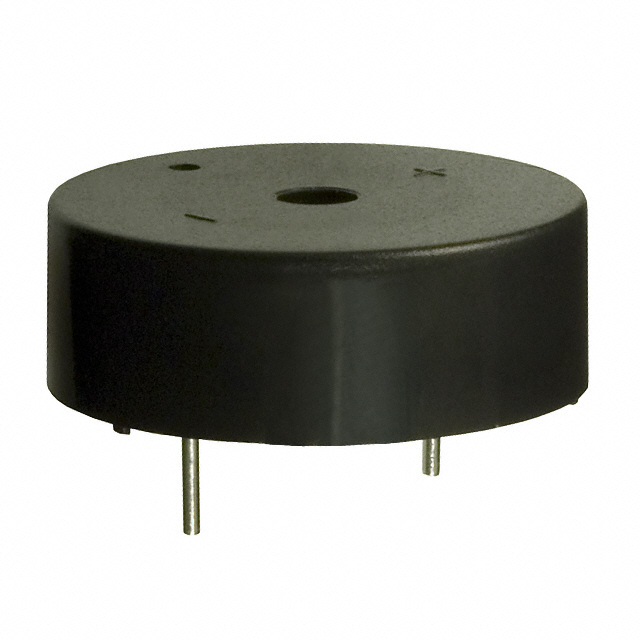

CEP-2224
ActiveSame Sky (Formerly CUI Devices)
AUDIO INDICATOR PIEZO 3VDC 20VDC 15MA 12VDC 78DB THROUGH HOLE PIN TRAY
CEP-2224
ActiveSame Sky (Formerly CUI Devices)
AUDIO INDICATOR PIEZO 3VDC 20VDC 15MA 12VDC 78DB THROUGH HOLE PIN TRAY
Description
General part information
CEP-2224
Buzzers Indicator, Internally Driven Piezo 12 V 15mA 3.4kHz 78dB @ 12V, 30cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | CEP-2224 |
|---|---|
| Current - Supply | 15 mA |
| Driver Circuitry | Indicator, Internally Driven |
| Frequency | 3.4 kHz |
| Height - Seated (Max) | 0.374 in |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.945 in |
| Sound Pressure Level (SPL) | 78 dB |
| Technology | Piezo |
| Termination | PC Pins |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 20 V |
| Voltage Range (Min) | 3 V |
