Description
General part information
DP4N

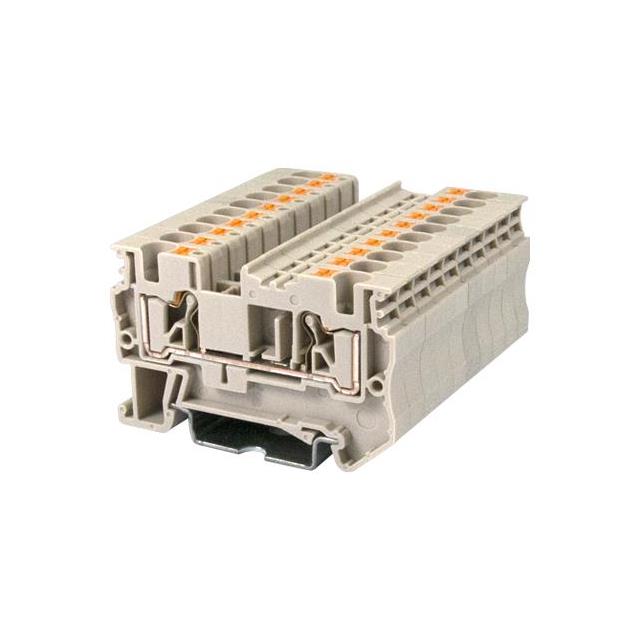

Terminal Block Connector 2 Position Feed Through Beige 10-24 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | DP4N |
|---|---|
| Color | Beige |
| Current - IEC | 32 A |
| Current - UL | 30 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 12 mm |
| Terminal Width | 6.1 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
