5151023F
ActiveDIALIGHT

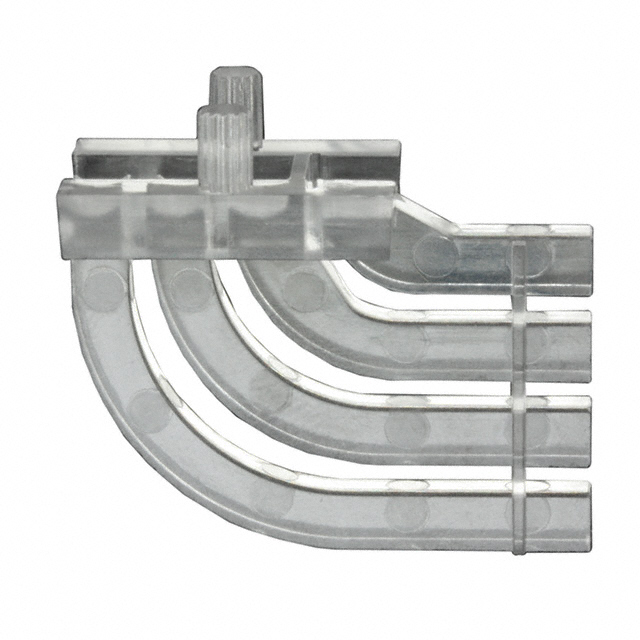

LIGHT PIPE QUAD LEVEL
Deep-Dive with AI
Search across all available documentation for this part.
5151023F
ActiveDIALIGHT
LIGHT PIPE QUAD LEVEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5151023F | 5151023 Series |
|---|---|---|
| - | - | |
| Color | Clear | Clear |
| Configuration | 4 High | 4 High |
| Lens Size | 3 mm | 3 mm |
| Lens Style | Square with Flat Top | Square with Flat Top |
| Mounting Type | Board Mount, Right Angle, Press Fit | Board Mount, Right Angle, Press Fit |
| Type | Rigid | Rigid |
5151023 Series
LIGHT PIPE QUAD LVL 3SHIELDS
| Part | Type | Color | Lens Style | Configuration | Lens Size | Mounting Type |
|---|---|---|---|---|---|---|
DIALIGHT 5151023804F | ||||||
DIALIGHT 5151023806F | ||||||
DIALIGHT 5151023801F | Rigid | |||||
DIALIGHT 5151023802F | Rigid | Clear | ||||
DIALIGHT 5151023803F | Rigid | Clear | Square with Flat Top | 4 High | 3 mm | Board Mount, Press Fit, Right Angle |
DIALIGHT 5151023F | Rigid | Clear | Square with Flat Top | 4 High | 3 mm | Board Mount, Press Fit, Right Angle |
DIALIGHT 5151023807F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.69 | |
| 10 | $ 1.77 | |||
| 100 | $ 1.30 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 1.06 | |||
| 2000 | $ 1.01 | |||
| 5000 | $ 0.96 | |||
| 10000 | $ 0.93 | |||
Description
General part information
5151023 Series
Light Pipe 4 High Clear Rigid Board Mount, Press Fit, Right Angle
Documents
Technical documentation and resources
No documents available
