1-87229-2

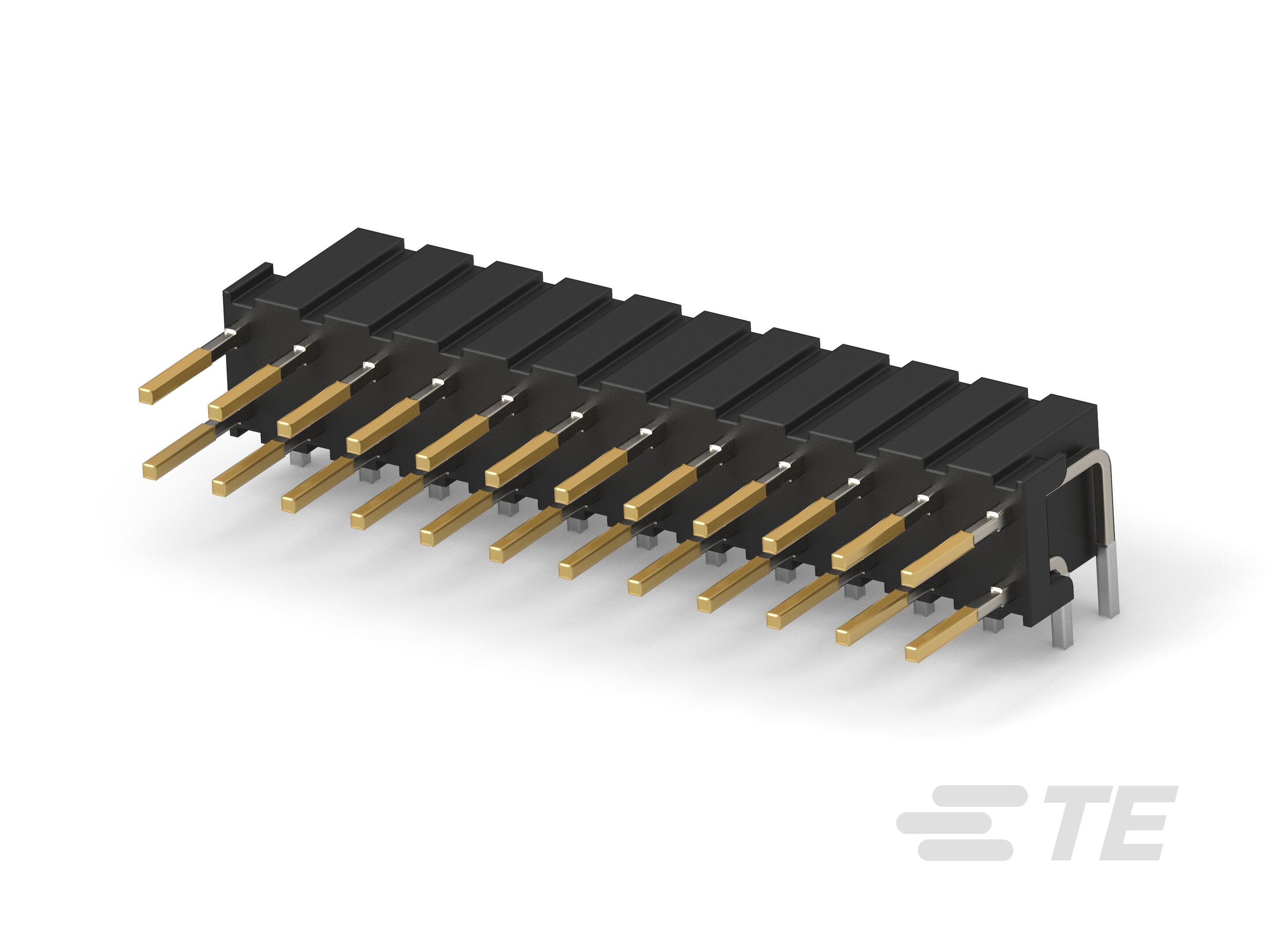

PCB Mount Header, Right Angle, Board-to-Board, 24 Position, 3.81 mm [.15 in] Centerline, Unshrouded, Gold (Au), Through Hole - Solder, Signal, Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-87229-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Length - Mating | 0.318 in |
| Contact Length - Post | 0.11 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 pos |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.15 in |
| Row Spacing - Mating | 0.15 in |
| Shrouding | Unshrouded |
| Style | Board, Board or Cable |
| Termination | Solder |
