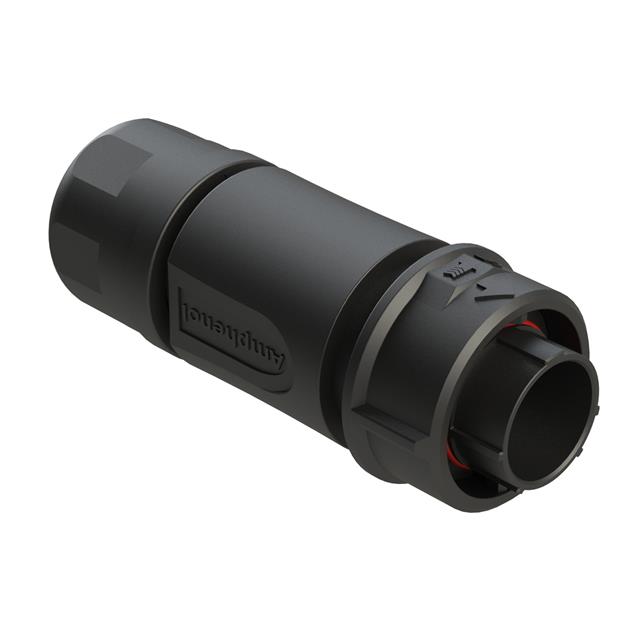

Specification	FLS6BS12N3P03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert Length	12 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Type	For Male Pins

Fathom Lock Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Contact Size	Insert Material	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection IP Rating	Ingress Protection Description	Housing Color	Contact Shape	Fastening Type	Shell Material	Orientation	Mounting Type	Connector Type	Mounting Feature	Contact Type	Note	Number of Positions	Primary Material	Shielding	Material Flammability Rating	Type	Features	Shell Size - Insert
McGill Microwave Systems FLS012N8P03	125 °C	-40 °C	16 S	Thermoplastic	12 mm	8 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Circular	Bayonet Lock	Thermoplastic	N (Normal)	Panel Mount	Receptacle Housing	Flange	Crimp	Contacts Not Included	8	Plastic	Unshielded	UL94 V-0	For Male Pins
McGill Microwave Systems FLS014N4P03-PM			12		14 mm	4 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black		Bayonet Lock	Thermoplastic	N (Normal)	Panel Mount	Receptacle Housing	Flange	Crimp		4	Plastic	Unshielded	UL94 V-0	For Male Pins
McGill Microwave Systems FLS6BS14N3S03	125 °C	-40 °C	8	Thermoplastic	14 mm	3 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Circular	Bayonet Lock	Thermoplastic	N (Normal)	Free Hanging (In-Line)	Plug Housing		Crimp	Contacts Not Included	3	Plastic	Unshielded	UL94 V-0	For Female Sockets	Backshell Coupling Nut
McGill Microwave Systems FLS610N4PHEC03	125 °C	-40 °C	16 S	Thermoplastic	10 mm	4 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Circular	Bayonet Lock	Thermoplastic	N (Normal)	Free Hanging (In-Line)	Plug Housing		Crimp	Contacts Not Included	4	Plastic	Unshielded	UL94 V-0	For Male Pins	Backshell Coupling Nut
McGill Microwave Systems FLS712N10P03			20		12 mm	10 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black		Bayonet Lock	Thermoplastic	N (Normal)	Panel Mount	Receptacle Housing	Bulkhead Front Side Nut	Crimp		10	Plastic	Unshielded	UL94 V-0	For Male Pins
McGill Microwave Systems FLS014N8S03			16 S		14 mm	8 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black		Bayonet Lock	Thermoplastic	N (Normal)	Panel Mount	Receptacle Housing	Flange	Crimp		8	Plastic	Unshielded	UL94 V-0	For Female Sockets
McGill Microwave Systems FLS6BS10N3W3P03			16 20				IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black		Bayonet Lock	Thermoplastic	N (Normal)	Free Hanging (In-Line)	Plug Housing		Crimp		6	Plastic	Unshielded	UL94 V-0	For Female Sockets	Backshell Coupling Nut	10-3W3
McGill Microwave Systems FLS714N4S03			12		14 mm	4 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black		Bayonet Lock	Thermoplastic	N (Normal)	Panel Mount	Receptacle Housing	Bulkhead Front Side Nut	Crimp		4	Plastic	Unshielded	UL94 V-0	For Female Sockets
McGill Microwave Systems FLS6BS14N2S03			12 16		14 mm	4 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black		Bayonet Lock	Thermoplastic	N (Normal)	Free Hanging (In-Line)	Plug Housing		Crimp		4	Plastic	Unshielded	UL94 V-0	For Female Sockets	Backshell Coupling Nut
McGill Microwave Systems FLS014N7S03-PM	125 °C	-40 °C	16 S	Thermoplastic	14 mm	7 mm	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Black	Circular	Bayonet Lock	Thermoplastic	N (Normal)	Panel Mount	Receptacle Housing	Flange	Crimp	Contacts Not Included	7	Plastic	Unshielded	UL94 V-0	For Female Sockets
