LCCA30732/OR-FT1
ActivePasternack
HD BNC M TO 1.0/2.3 M USING ORAN
LCCA30732/OR-FT1
ActivePasternack
HD BNC M TO 1.0/2.3 M USING ORAN
Description
General part information
LCCA30732/OR-FT1

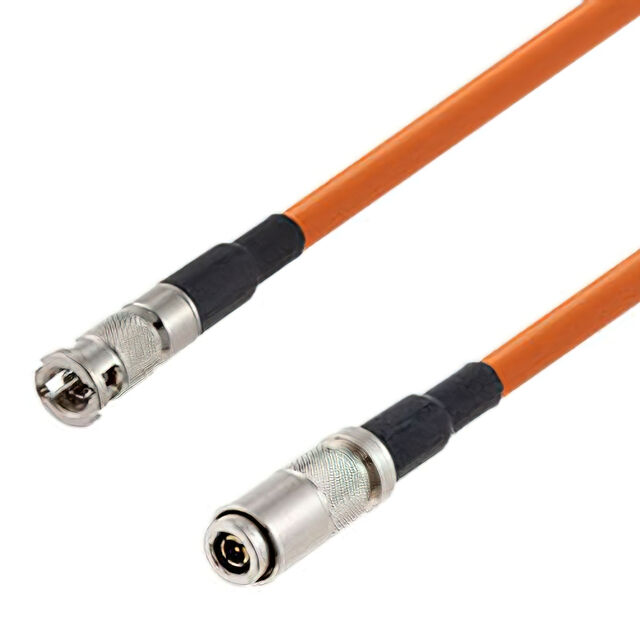

Cable Assembly Coaxial 1.0/2.3 to HD-BNC Belden 4855R 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30732/OR-FT1 |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 1.0/2.3 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 75 Ohms |
| Cable Type | Belden 4855R |
| Color | Orange |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 12 Gbps |
| Length | 12 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | 1.0/2.3 to HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
