1-2834016-4
ActiveTE Connectivity AMP Connectors

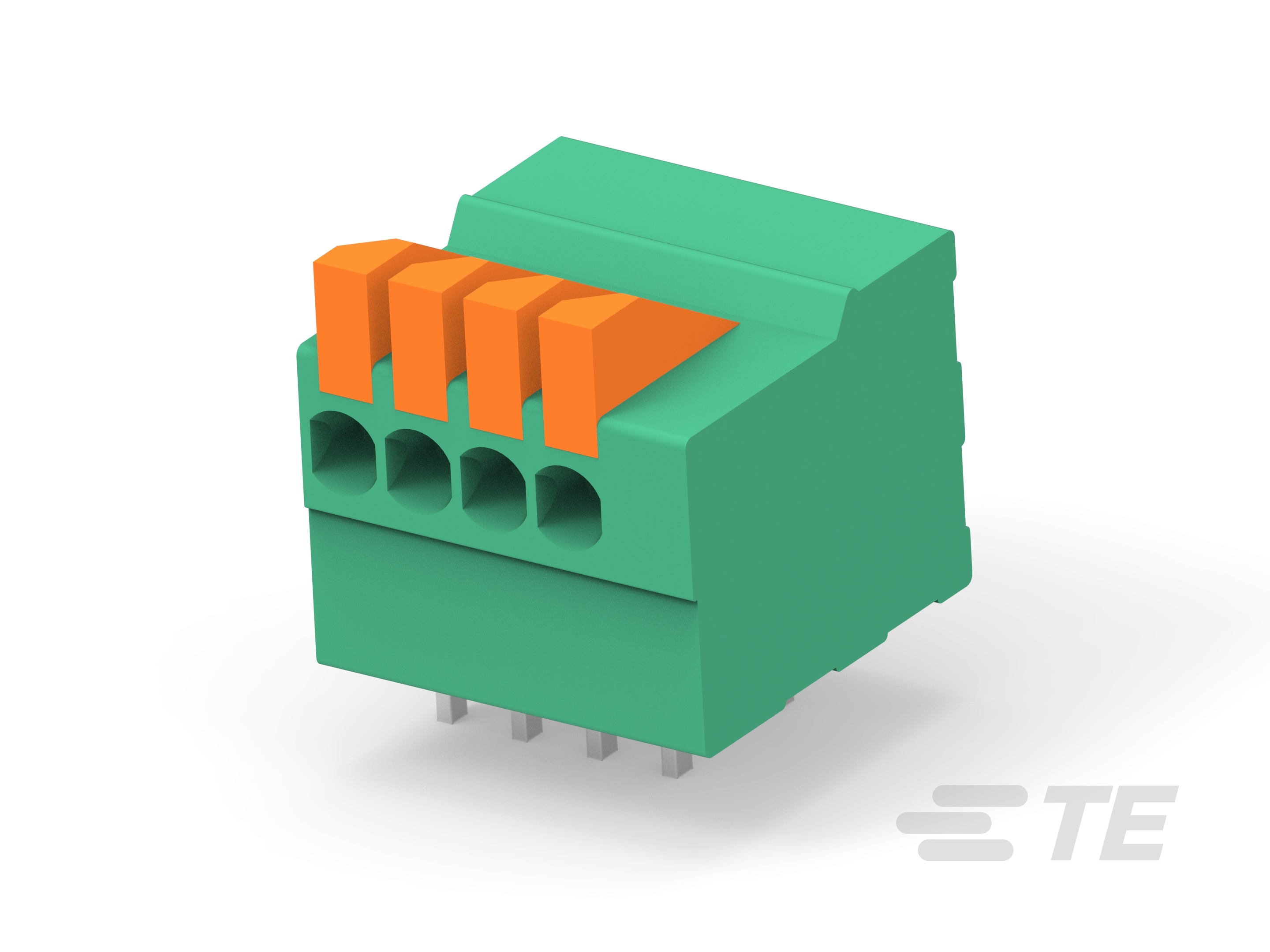

TERM BLK 4P SIDE ENT 2.54MM PCB
1-2834016-4
ActiveTE Connectivity AMP Connectors
TERM BLK 4P SIDE ENT 2.54MM PCB
Description
General part information
1-2834016-4
4 Position PCB Terminal Block, Receptacle, Wire-to-Board, 1 Row, 90° Wire Entry Angle, 26 – 20 AWG, 300 VAC, Printed Circuit Board, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2834016-4 |
|---|---|
| Color | Green |
| Current | 6 A |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.1 in |
| Positions Per Level | 4 |
| Voltage | 150 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
