NSYTBP241912HT
ActiveSCHNEIDER ELECTRIC
BOX PLAS GRY/CL 9.49"L X 7.64""W
NSYTBP241912HT
ActiveSCHNEIDER ELECTRIC
BOX PLAS GRY/CL 9.49"L X 7.64""W
Description
General part information
NSYTBP241912HT

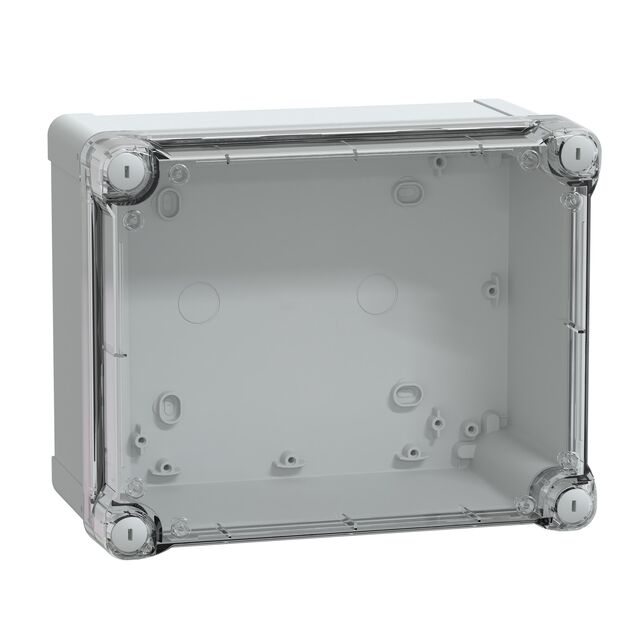

Box Plastic, Polycarbonate Light Gray, Clear Cover/Door Cover Included 9.488" L x 7.638" W (241.00mm x 194.00mm) X 4.213" (107.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTBP241912HT |
|---|---|
| Area (L x W) | 72.5 in² |
| Color | Light Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Height | 4.213 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Ratings | IP66 |
| Size / Dimension Length | 9.488 in |
| Size / Dimension Width | 7.638 in |
| Thickness | 0.276 in |
