Description
General part information

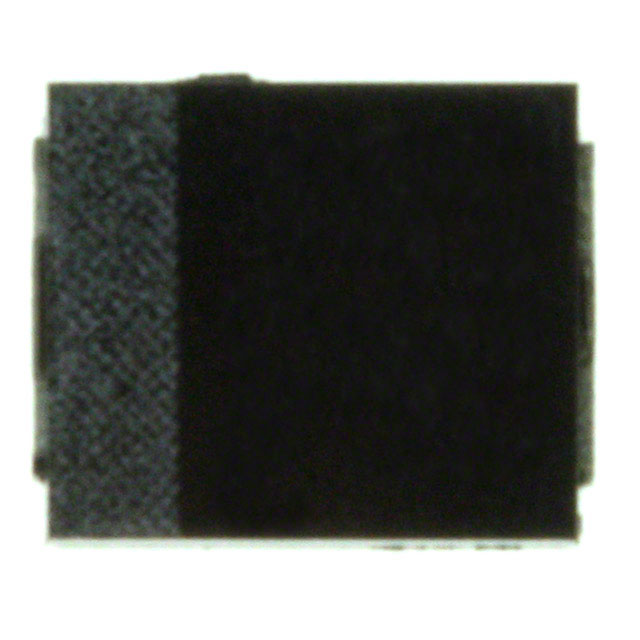

F320G107MBA
100 µF Molded Tantalum Polymer Capacitor 4 V 1411 (3528 Metric) 70mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | F320G107MBA |
|---|---|
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 70 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.083 in |
| Manufacturer Size Code | B |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1411 (3528 Metric) |
| Package Diameter | 3528 mm |
| Package Name | 1411 |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.11 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
