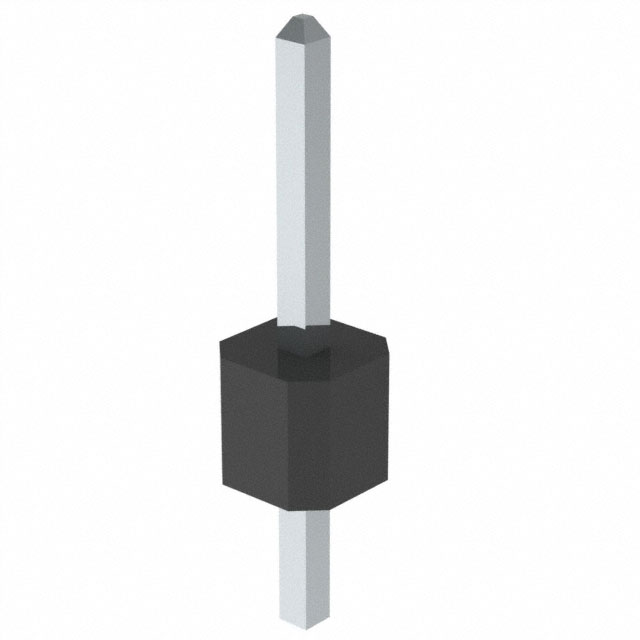

PEC01SAAN

Active

Sullins Connector Solutions

CONN HEADER VERT 1POS

Deep-Dive with AI

Search across all available documentation for this part.

PEC01SAAN

Active

Sullins Connector Solutions

CONN HEADER VERT 1POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC01SAAN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC01 Series

Part	Number of Positions Loaded	Shrouding	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating	Termination	Contact Shape	Number of Rows	Connector Type	Insulation Material	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Insulation Height	Insulation Height	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Style	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Overall Contact Length
Sullins Connector Solutions PEC01DAEN	All	Unshrouded	13.21 mm	0.52 "	0.23 in	5.84 mm	Solder	Square	2	Breakaway Header	Polybutylene Terephthalate (PBT)	0.85 in	21.59 mm	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin	2.54 mm	0.1 in	2	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin
Sullins Connector Solutions PEC01DAGN	All	Unshrouded			0.23 in	5.84 mm	Solder	Square	2	Breakaway Header	Polybutylene Terephthalate (PBT)	1.05 in	26.67 mm	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin	2.54 mm	0.1 in	2	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin	18.29 mm	0.72 "
Sullins Connector Solutions PEC01DABN	All	Unshrouded	5.84 mm	0.23 in	0.23 in	5.84 mm	Solder	Square	2	Breakaway Header	Polybutylene Terephthalate (PBT)	0.56 in	14.22 mm	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin	2.54 mm	0.1 in	2	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin
Sullins Connector Solutions PEC01SFCN	All	Unshrouded			0.318 "		Solder	Square	1	Breakaway Header	Polybutylene Terephthalate (PBT)	0.738 "	18.75 mm	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin			1	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin	8.13 mm	0.32 in	8.08 mm
Sullins Connector Solutions PEC01SAAN	All	Unshrouded			0.23 in	5.84 mm	Solder	Square	1	Breakaway Header	Polybutylene Terephthalate (PBT)	0.45 "	11.43 mm	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin			1	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin	3.05 mm	0.12 in
Sullins Connector Solutions PEC01DAHN	All	Unshrouded			0.23 in	5.84 mm	Solder	Square	2	Breakaway Header	Polybutylene Terephthalate (PBT)	1.15 in	29.21 mm	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin	2.54 mm	0.1 in	2	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin	20.83 mm	0.82 in
Sullins Connector Solutions PEC01DGAN	All	Unshrouded	2.54 mm	0.1 in	0.318 "		Solder	Square	2	Breakaway Header	Polybutylene Terephthalate (PBT)			3 A	Push-Pull	125 °C	-65 ░C	Black	0.24 in	6.1 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin	2.54 mm	0.1 in	2	2.54 µm	100 µin	Through Hole Right Angle	Board to Board Cable	Male Pin			8.08 mm
Sullins Connector Solutions PEC01DAAN	All	Unshrouded			0.23 in	5.84 mm	Solder	Square	2	Breakaway Header	Polybutylene Terephthalate (PBT)	0.45 "	11.43 mm	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin	2.54 mm	0.1 in	2	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin	3.05 mm	0.12 in
Sullins Connector Solutions PEC01DACN	All	Unshrouded			0.23 in	5.84 mm	Solder	Square	2	Breakaway Header	Polybutylene Terephthalate (PBT)		0.65 in	3 A	Push-Pull	125 °C	-65 ░C	Black	0.1 in	2.54 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin	2.54 mm	0.1 in	2	2.54 µm	100 µin	Through Hole	Board to Board Cable	Male Pin	8.13 mm	0.32 in		16.51 mm
Sullins Connector Solutions PEC01SBEN	All	Unshrouded	12.7 mm	0.5 in	0.23 in	5.84 mm	Solder	Square	1	Breakaway Header	Polybutylene Terephthalate (PBT)			3 A	Push-Pull	125 °C	-65 ░C	Black	0.14 in	3.56 mm	Phosphor Bronze	UL94 V-0	2.54 çm	100 çin	Tin			1	2.54 µm	100 µin	Through Hole Right Angle	Board to Board Cable	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		10	$ 0.06
		100	$ 0.04
		500	$ 0.04
		1000	$ 0.03
		5000	$ 0.03
		10000	$ 0.03

Description

General part information

PEC01 Series

Connector Header Through Hole 1 position

Documents

Technical documentation and resources

No documents available
