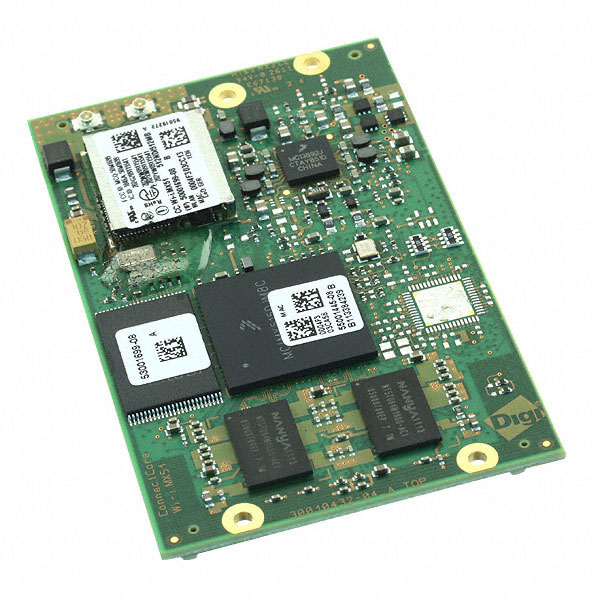

CC-WMX-LB69-VM-B

Obsolete

Digi

RF TXRX MODULE WIFI U.FL

Deep-Dive with AI

Search across all available documentation for this part.

CC-WMX-LB69-VM-B

Obsolete

Digi

RF TXRX MODULE WIFI U.FL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CC-WMX-LB69-VM-B	CC-WMX Series

	-	-
Antenna Type	Antenna Not Included, U.FL	Antenna Not Included, U.FL, Antenna Not Included
Connector Type	-	Board-to-Board (BTB) Socket - 360
Contents	-	Power Supply, Cable(s), Accessories, Board(s)
Core Processor	-	i.MX53, ARM® Cortex®-A8
Current - Receiving	-	100 - 700 mA
Current - Transmitting	-	406 - 700 mA
Data Rate	65 Mbps	65 - 200 Mbps
For Use With/Related Products	-	i.MX 8M Nano, i.MX53, i.MX28, i.MX 8M Mini
Frequency	5 GHz, 2.4 GHz	1 - 800 GHz
Frequency	-	2.4 - 4.9 GHz
Frequency	-	2.48 - 5.85 GHz
Memory Size	-	1 - 512 MB
Memory Size	-	1 GB
Memory Size [custom]	512 MB	4 - 512 MB
Memory Size [custom]	512 MB	256 - 512 MB
Modulation	-	QPSK, DQPSK, CCK, DBPSK, 64QAM, BPSK, 16QAM
Module/Board Type	-	MPU Core
Mounting Type	-	Card Edge, Chassis Mount, Surface Mount
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	-20 C	-40 - -20 C
Package / Case	Module	Module, 100-SMD Module
Power - Output	19 dBm	2 - 19 dBm
Protocol	802.11a/b/g/n	802.11a/b/g/n, Bluetooth v4.0, 802.11a/b/g/n/ac, Bluetooth v5.0
RF Family/Standard	WiFi	WiFi, Bluetooth
Sensitivity	-94 dBm	-94 dBm
Serial Interfaces	UART, SPI, USB, I2C	UART, SPI, USB, I2C, I2S, JTAG, PWM, SDIO, Ethernet, GPIO, ADC, PCIe
Size / Dimension	-	82 mm
Size / Dimension	-	1.97 "
Size / Dimension	-	50 mm
Size / Dimension	-	3.23 "
Speed	-	800 MHz
Supplied Contents	-	Board(s), Power Supply, Cable(s), Accessories
Type	-	802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver, 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN)
Utilized IC / Part	-	i.MX28, MKL14Z32VFT4
Voltage - Supply	-	3.3 - 3.75 V
Voltage - Supply [Max]	4.8 V	4.8 V
Voltage - Supply [Min]	3.4 V	3.4 V

CC-WMX Series

RF TXRX MODULE WIFI U.FL

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Protocol	Package / Case	Antenna Type	Power - Output	Sensitivity	Data Rate	Frequency	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	RF Family/Standard	For Use With/Related Products	Supplied Contents	Type	Modulation	Current - Receiving	Current - Transmitting	Mounting Type	Memory Size	Voltage - Supply
Digi CC-WMX-LB69-VM-B	3.4 V	4.8 V	-20 C	70 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	19 dBm	-94 dBm	65 Mbps	2.4 GHz, 5 GHz	512 MB	512 MB	I2C, SPI, UART, USB	WiFi
Digi CC-WMX8MN-KIT											2.4 GHz, 5 GHz					i.MX 8M Nano	Board(s)	802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver
Digi CC-WMX53-LX											2.4 GHz, 5 GHz					i.MX53	Accessories, Board(s), Cable(s), Power Supply	802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Transceiver
Digi CC-WMX-PF58-QK			-40 °C	85 °C	802.11a/b/g/n, Bluetooth v4.0	Module	Antenna Not Included, U.FL	17 dBm		150 Mbps	2.4 GHz, 5 GHz	256 MB	256 MB	I2C, I2S, JTAG, PWM, SPI, UART, USB	Bluetooth, WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	100 mA	406 mA	Card Edge
Digi CC-WMX-MB47-VM	3.4 V	4.8 V	-40 °C	85 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	19 dBm	-94 dBm	65 Mbps	2.4 GHz, 5 GHz			I2C, SPI, UART, USB	WiFi								128 MB, 128 MB
Digi CC-WMX-KD69-VM-B			-40 °C	85 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	17 dBm	-94 dBm	65 Mbps	2.4 GHz, 5 GHz	512 MB	512 MB	Ethernet, I2C, I2S, JTAG, SDIO, SPI, UART, USB	WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	700 mA	700 mA	Chassis Mount		3.75 V
Digi CC-WMX6UL-START											2.4 GHz, 5 GHz						Board(s), Cable(s)	802.11 a/b/g/n/ac (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver
Digi CC-WMX-PF58-VM-B			-40 °C	85 °C	802.11a/b/g/n, Bluetooth v4.0	Module	Antenna Not Included, U.FL	17 dBm		150 Mbps	2.4 GHz, 5 GHz	256 MB	256 MB	I2C, I2S, JTAG, PWM, SPI, UART, USB	Bluetooth, WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	100 mA	406 mA	Card Edge
Digi CC-WMX-L87C-N			-40 °C	85 °C	802.11a/b/g/n/ac, Bluetooth v5.0	Module					800 MHz			Ethernet, GPIO, I2C, I2S, JTAG, PWM, SPI, UART, USB	Bluetooth, WiFi							Surface Mount	1 GB, 4 GB
Digi CC-WMX-PE47-JT-B			-40 °C	85 °C	802.11a/b/g/n	Module	Antenna Not Included, U.FL	17 dBm		150 Mbps	2.4 GHz, 5 GHz			I2C, I2S, JTAG, PWM, SPI, UART, USB	WiFi				16QAM, 64QAM, BPSK, CCK, DBPSK, DQPSK, QPSK	100 mA	406 mA	Card Edge	128 MB, 128 MB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CC-WMX Series

WiFi 802.11a/b/g/n Transceiver Module 2.4GHz, 5GHz Antenna Not Included, U.FL

Documents

Technical documentation and resources

No documents available
