F-362XP
ActivePCB TRANSFORMER, BOBBIN, 2 X 115V, 2 X 10V, 10 VA, 50HZ / 60HZ, DUAL PRIMARY, DUAL SECONDARY
F-362XP
ActivePCB TRANSFORMER, BOBBIN, 2 X 115V, 2 X 10V, 10 VA, 50HZ / 60HZ, DUAL PRIMARY, DUAL SECONDARY
Description
General part information
F-362XP

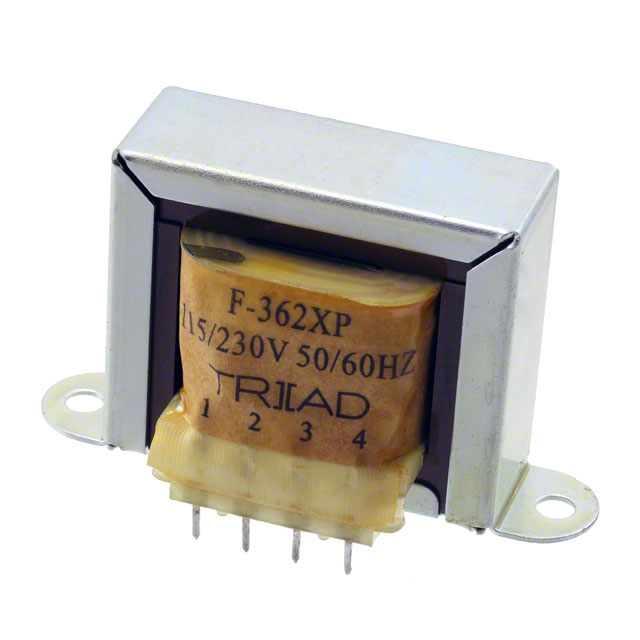

The F-362XP is a PC-mount Power Transformer with 230V series/115V parallel @ 50/60Hz primary and 20V CT @ 0.5A series/10V CT @ 1A parallel secondary. It is wide selection of plug-in types that meet the needs of PC boards and solid state power supply design. This transformer can satisfy power as well as control and instrumentation applications. This products are 100% hi-pot tested with an insulation of 1500V between primary and secondary windings.
Technical Specifications
Parameters and characteristics for this part
| Specification | F-362XP |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 1 A |
| Current - Output (Max) Series | 500 mA |
| Height - Seated (Max) | 41.28 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 10 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 71.42 mm |
| Size / Dimension Width | 36.5 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 10 V |
| Voltage - Secondary (Full Load) (Series) | 20 V |
| Weight | 0.688 lb |
