Description
General part information

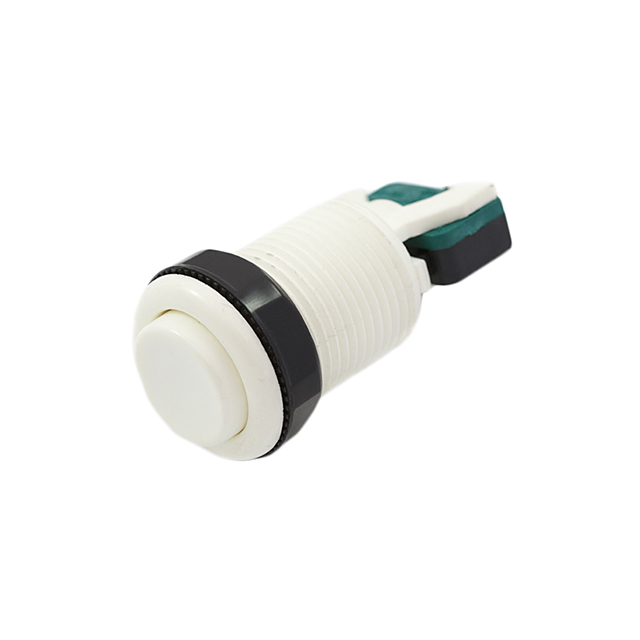

COM-09340
Pushbutton Switch SPDT Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | COM-09340 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | White |
| Current Rating | 3 A |
| Features | Arcade Style |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 28 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Type | Standard |
| Voltage Rating - AC | 120 V |
