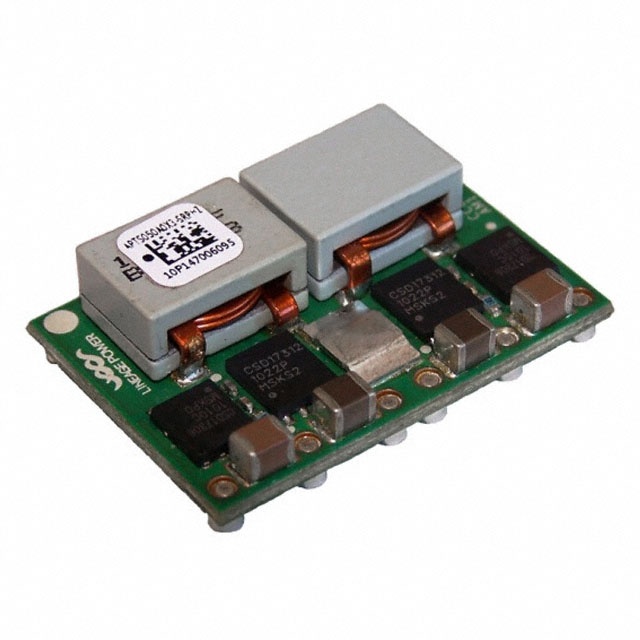

APTS050A0X3-SRPHZ
ActiveOmniOn Power™
DC DC CONVERTER 0.7-2V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APTS050A0X3-SRPHZ
ActiveOmniOn Power™
DC DC CONVERTER 0.7-2V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APTS050A0X3-SRPHZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 50 A |
| Efficiency | 90.1 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SMD Module |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 33 mm |
| Size / Dimension [x] | 1.3 " |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [z] | 10 mm |
| Size / Dimension [z] | 0.39 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 2 V |
| Voltage - Output 1 [Min] | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 50.32 | |
| 5 | $ 49.93 | |||
| 10 | $ 49.54 | |||
| 25 | $ 47.96 | |||
| 50 | $ 45.60 | |||
| Digi-Reel® | 1 | $ 50.32 | ||
| 5 | $ 49.93 | |||
| 10 | $ 49.54 | |||
| 25 | $ 47.96 | |||
| 50 | $ 45.60 | |||
| Tape & Reel (TR) | 140 | $ 42.46 | ||
Description
General part information
APTS050 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 2V 50A 4.5V - 14V Input
