Description
General part information

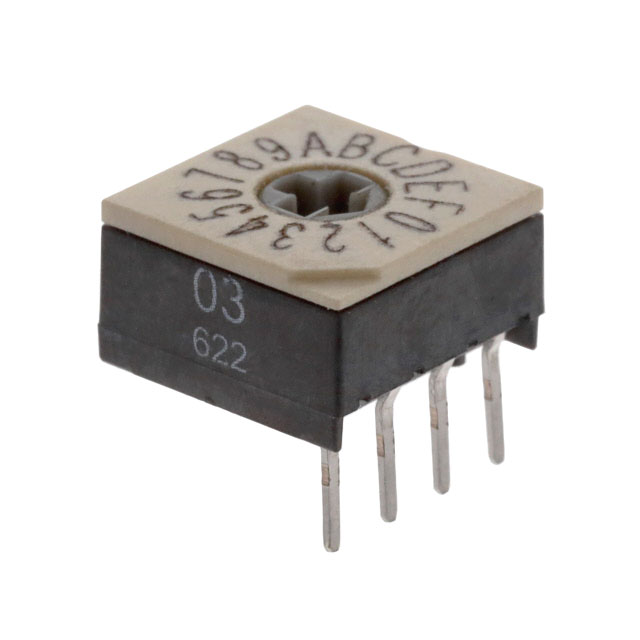

P60A703
Dip Switch Hexadecimal 16 Position Through Hole Rotary for Tool Actuator 150mA 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | P60A703 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Thermoplastic |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Contact Material | Stainless Steel |
| Current Rating | 150 mA |
| Height Above Board | 0.236 in |
| Length | 0.394 in |
| Mechanical Life (Steps) | 10000 Steps |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Pitch | 0.1 in |
| Pitch Type | Full |
| Termination Style | PC Pin |
| Voltage Rating | 24 V |
| Washable | No |
