2232683-1
ActiveTE Connectivity AMP Connectors
MAG-MATE W/250 CONN TAB TPBR
2232683-1
ActiveTE Connectivity AMP Connectors
MAG-MATE W/250 CONN TAB TPBR
Description
General part information
2232683-1

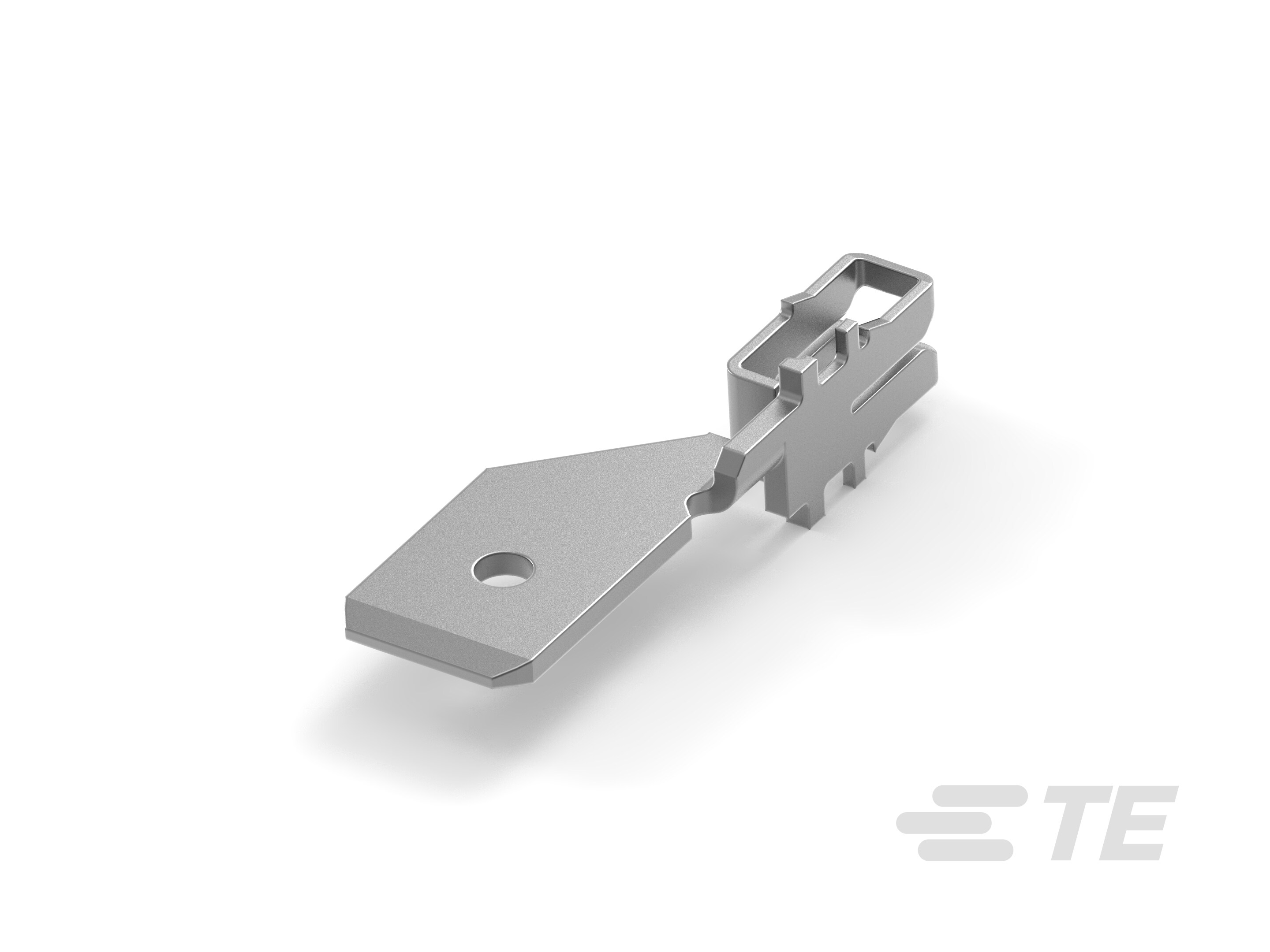

Tab, 6.35 mm [.25 in] Tab Width, .72 – .91 mm Magnet Wire, 21 – 19 AWG Magnet Wire, Insulation Displacement (IDC), MAG-MATE, Magnet Wire Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 2232683-1 |
|---|---|
| Features | QC .250 |
| Style | 250 |
| Terminal Type | Box IDC |
| Termination | Twisted, Tab |
| Wire Gauge (AWG) (Max) | 21 AWG |
| Wire Gauge (AWG) (Min) | 19 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
