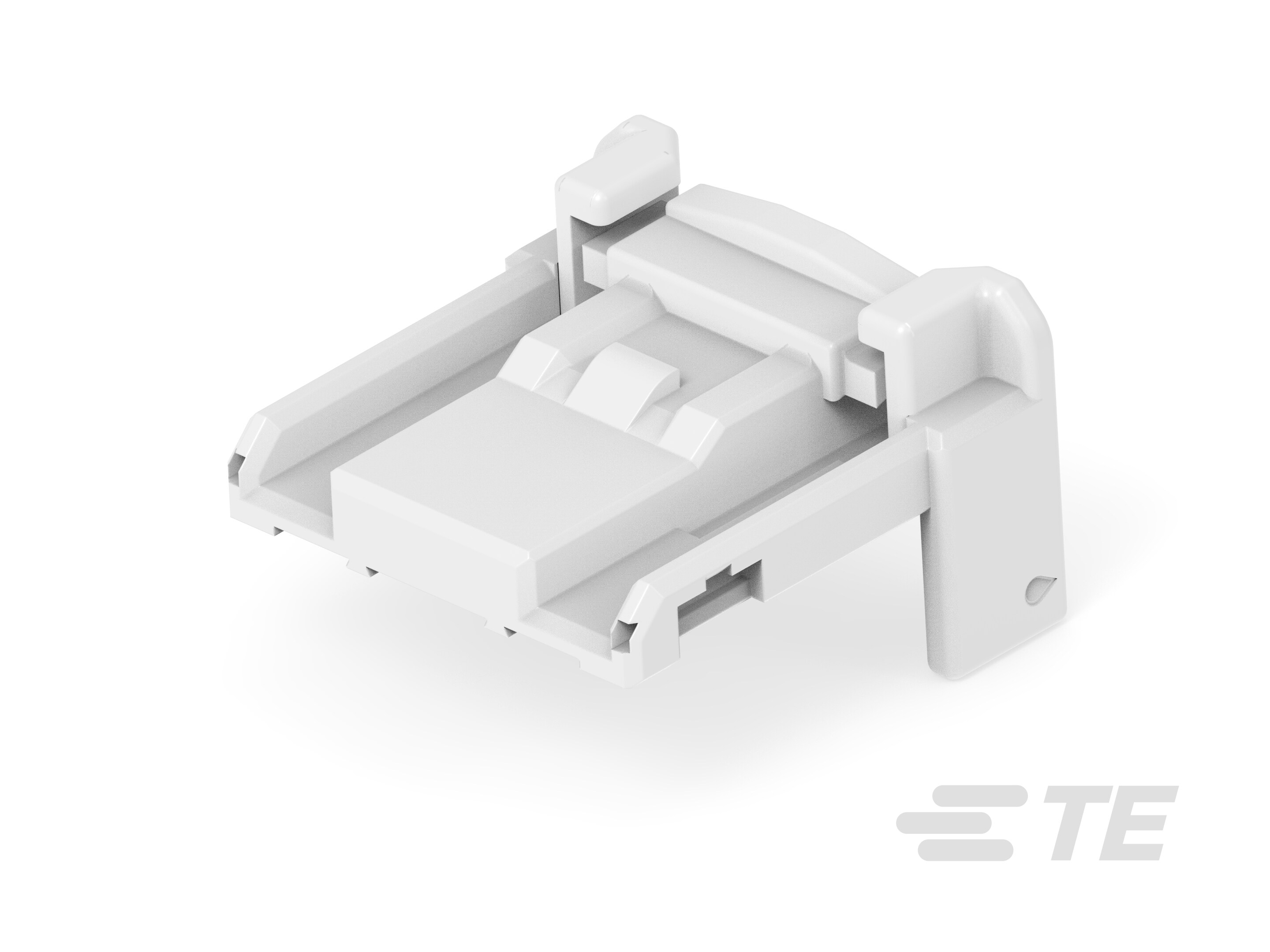

1318694-1
ActiveTE Connectivity AMP Connectors
025 IDC KOCK HSG 16P
1318694-1
ActiveTE Connectivity AMP Connectors
025 IDC KOCK HSG 16P
Description
General part information
0.64/025 Connector System Series
16 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.2 mm [.086 in] Centerline, Natural, Wire & Cable, Signal, 0.64/025 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1318694-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | IDC |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.087 in |
