2-1761465-1
ActiveTE Connectivity AMP Connectors
PCI EXPRESS RA ASSY 5.8MM SLOT 2.3MM PC
2-1761465-1
ActiveTE Connectivity AMP Connectors
PCI EXPRESS RA ASSY 5.8MM SLOT 2.3MM PC
Description
General part information
2-1761465-1

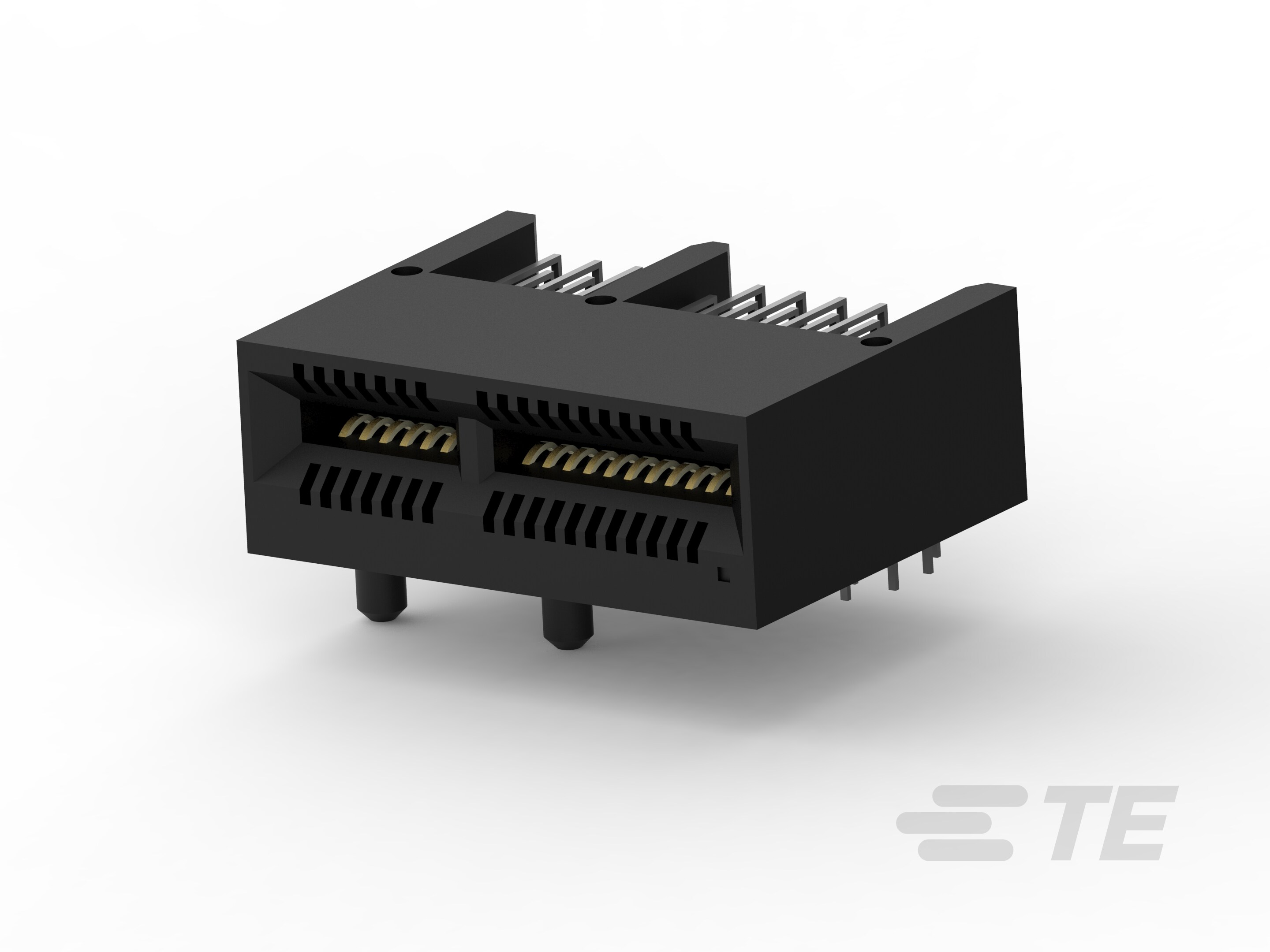

Board-to-Board, 36 Position, 1 mm [.039 in] Centerline, Right Angle, Black, 9.4 mm [.37 in] Height, PCI & PCI Express Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1761465-1 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Gender | Female |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.039 in |
| Read Out | Dual |
| Termination | Solder |
