General part information

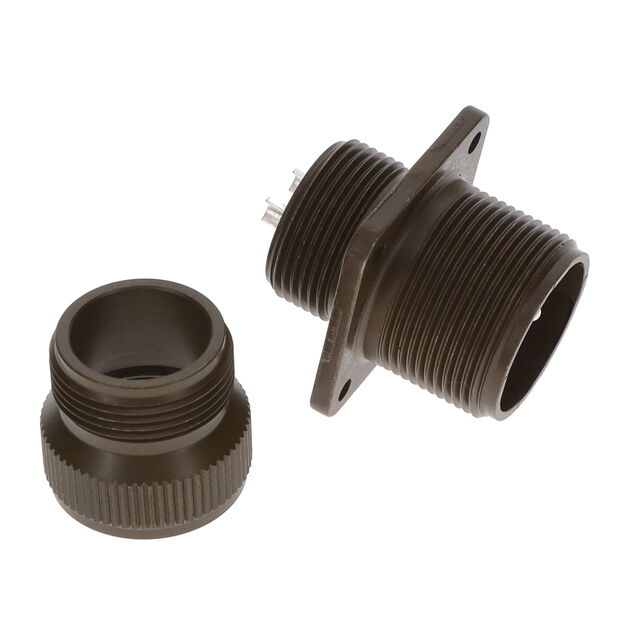

Position Circular Connector
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
3D models and CAD resources for this part
Technical documentation and resources
No documents available
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Orientation | Shell Material | Primary Material | Features | Fastening Type | Number of Positions | Mounting Type | Mounting Feature | Applications | Voltage Rating (DC) | Voltage Rating (AC) | Shell Size - Insert Length | Shell Size - Insert Width | Current Rating | Color | Contact Material | Insert Material | Contact Finish - Mating | Ingress Protection | Qualification | Termination | Shielding | Shell Finish | Connector Type | Shell Size - Insert | Backshell Material | Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | 125 °C | -55 °C | N (Normal) | Aluminum Alloy | Metal | Backshell | Threaded | 2 | Panel Mount | Flange | Marine Military | 700 VDC | 500 VAC | 16 mm | 11 mm | 23 A | Olive Drab | Copper Alloy | Neoprene | Silver | Environment Resistant | MIL-5015 | Solder Cup | Unshielded | Cadmium Olive Drab Chromate | Male Pins Receptacle | |||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||
Amphenol Aerospace Operations | |||||||||||||||||||||||||||||
 Amphenol Aerospace Operations | 125 °C | -55 °C | N (Normal) | Aluminum Alloy | Metal | Threaded | 5 | Panel Mount | Flange | Marine Military | 700 VDC | 500 VAC | 13 A | Olive Drab | Copper Alloy | Neoprene | Silver | Environment Resistant | MIL-5015 | Solder Cup | Unshielded | Cadmium Olive Drab Chromate | Male Pins Receptacle | 16S-8 | |||||
 Amphenol Aerospace Operations | 125 °C | -55 °C | N (Normal) | Aluminum Alloy | Metal | Backshell | Threaded | 7 | Panel Mount | Flange | Marine Military | Olive Drab | Copper Alloy | Neoprene | Silver | MIL-5015 | Solder Cup | Unshielded | Cadmium Olive Drab Chromate | Female Sockets Receptacle | 16S-1 | Aluminum Alloy | Olive Drab Chromate over Cadmium | ||||||
 Amphenol Aerospace Operations | 125 °C | -55 °C | N (Normal) | Aluminum Alloy | Metal | Threaded | 3 | Panel Mount | Flange | Marine Military | 700 VDC | 500 VAC | 16 mm | 10 mm | 23 A | Olive Drab | Copper Alloy | Neoprene | Silver | Environment Resistant | MIL-5015 | Solder Cup | Unshielded | Cadmium Olive Drab Chromate | Female Sockets Receptacle |
