X-NUCLEO-OUT19A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON IPS8160HQ-1 FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-OUT19A1
ActiveINDUSTRIAL DIGITAL OUTPUT EXPANSION BOARD BASED ON IPS8160HQ-1 FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-OUT19A1 | IPS8160 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Driver | Driver |
| Interconnect System | ST Morpho, Arduino R3 Shield | ST Morpho, Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | Power Management | Power Management |
| Utilized IC / Part | IPS8160HQ-1 | IPS8160HQ-1, IPS8160HQ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 65.00 | |
IPS8160 Series
Industrial digital output expansion board based on IPS8160HQ-1 for STM32 Nucleo
| Part | Function | Utilized IC / Part | Type | Contents | Suggested Programming Environment | Platform | Interconnect System |
|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-OUT19A1 | |||||||
STMicroelectronics X-NUCLEO-OUT19A1 | Driver | IPS8160HQ-1 | Power Management | Board(s) | STM32Cube | Nucleo | Arduino R3 Shield, ST Morpho |
STMicroelectronics X-NUCLEO-OUT09A1 | |||||||
STMicroelectronics X-NUCLEO-OUT09A1 | Driver | IPS8160HQ | Power Management | Board(s) | STM32Cube | Nucleo | Arduino R3 Shield, ST Morpho |
Description
General part information
IPS8160 Series

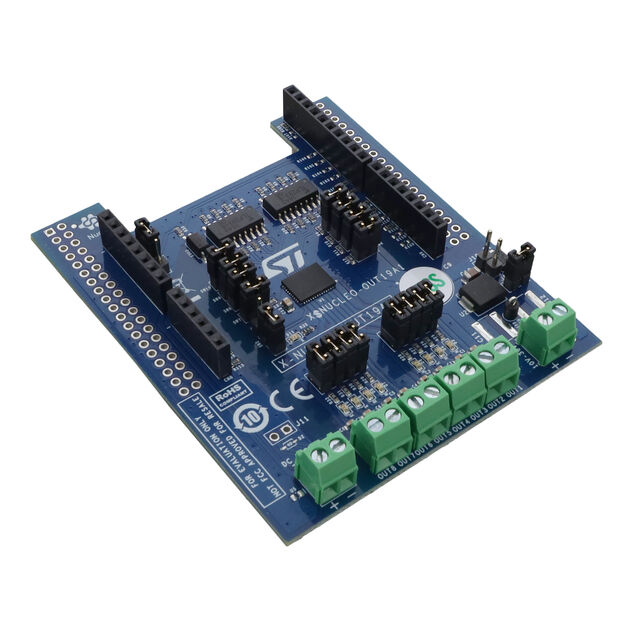

The X-NUCLEO-OUT19A1 industrial digital output expansion board for STM32Nucleo provides a powerful and flexible environment for the evaluation of the driving and diagnostic capabilities of the IPS8160HQ-1 octal high-side smart power solid state relay, in a digital output module connected to 1 A industrial loads.
The X-NUCLEO-OUT19A1 interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins and Arduino R3 connectors.
The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.
