02243100
ActiveRose Enclosures
BOX PLASTIC 9.45"L X 6.3"W
02243100
ActiveRose Enclosures
BOX PLASTIC 9.45"L X 6.3"W
Description
General part information
02243100

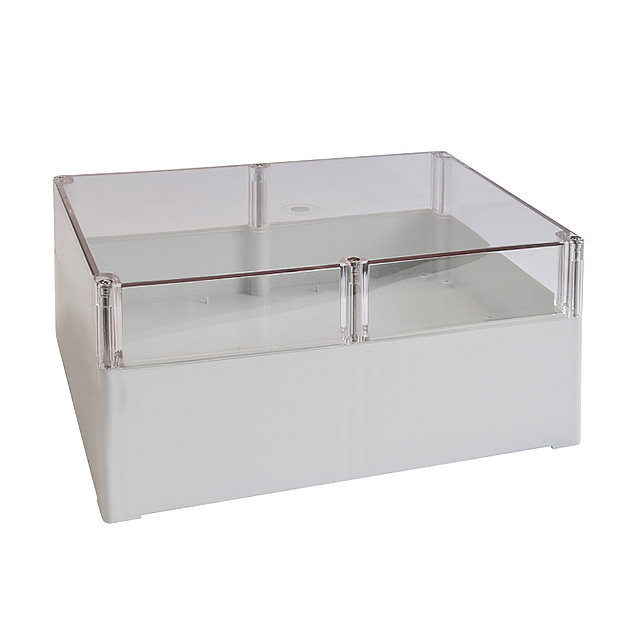

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 9.449" L x 6.299" W (240.00mm x 160.00mm) X 4.724" (120.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 02243100 |
|---|---|
| Area (L x W) | 59.5 in² |
| Color | Clear Cover/Door, Gray, Light Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 4.724 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | UL-508, IP66, NEMA 4X |
| Size / Dimension Length | 9.449 in |
| Size / Dimension Width | 6.299 in |
| Weight | 1.8 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
