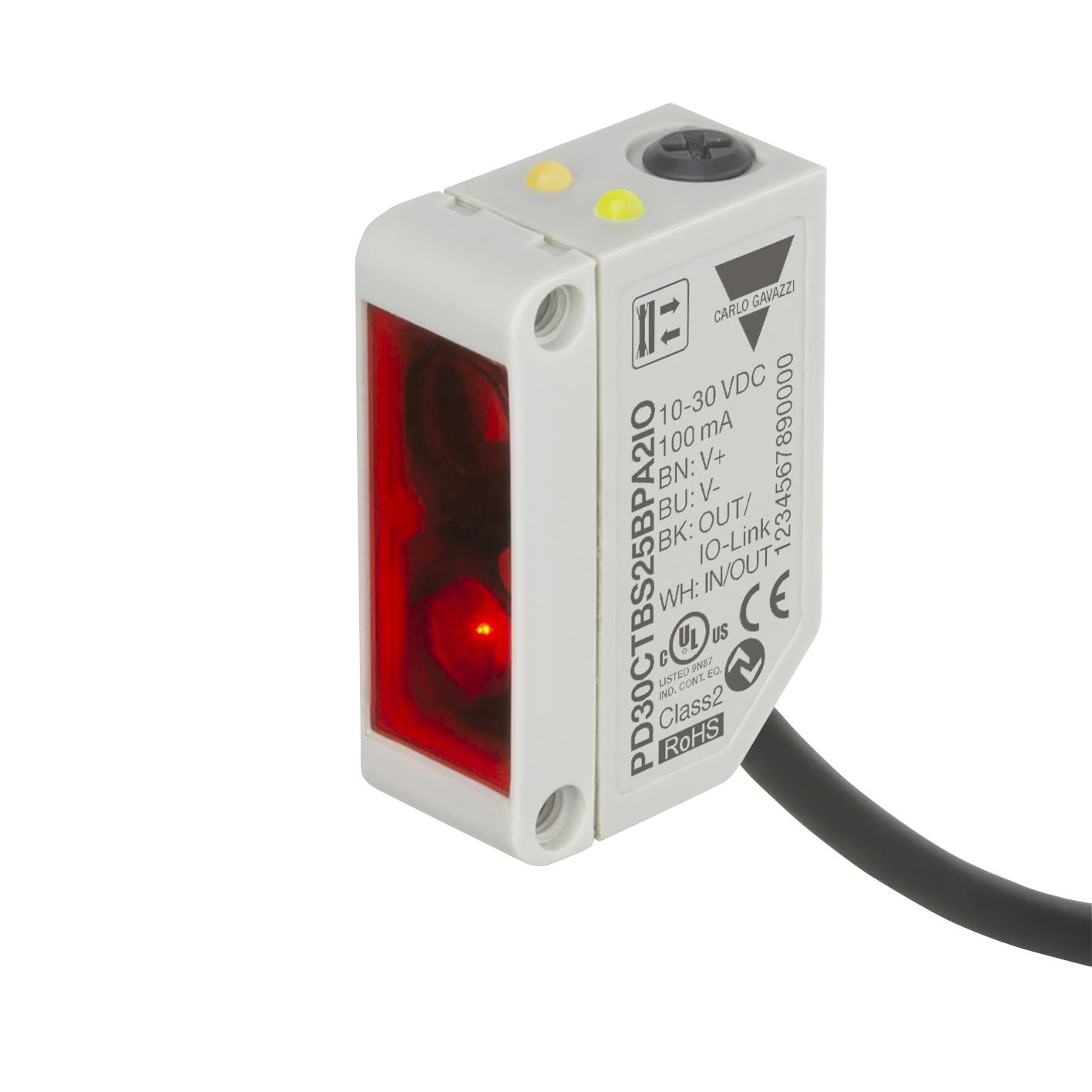

PD30CTBS25BPA2IO
ActiveCarlo Gavazzi Inc.
PHOTO BGS RD 250MM PL TOP POINT
PD30CTBS25BPA2IO
ActiveCarlo Gavazzi Inc.
PHOTO BGS RD 250MM PL TOP POINT
Description
General part information
PD30CTBS25BPA2IO
Background Suppression Optical Sensor 9.843" (250mm) Push-Pull, NPN/PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | PD30CTBS25BPA2IO |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 620 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP, NPN, Push-Pull |
| Response Time | 1 ms |
| Sensing Distance | 9.843 " |
| Sensing Method | Background Suppression |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
