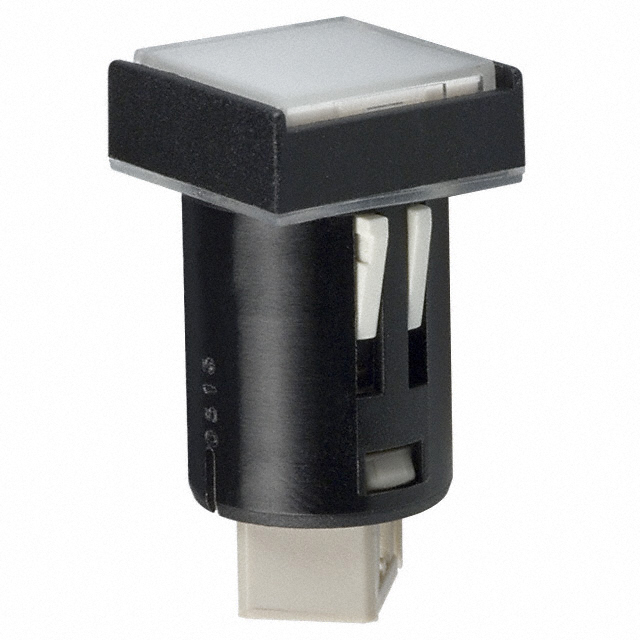

1.15114.0061002

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 0.1A 42V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.15114.0061002	1.15114 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Button, Square	Button, Square, Rectangular, Button, Round
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Clear	Clear
Current Rating (Amps)	100 mA	100 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	-	1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.1 mm	16.1 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Connector	Connector
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	42 V	42 V
Voltage Rating - DC	42 V	35 - 42 V

SWITCH PUSH SPST-NO 0.1A 42V

Part	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC	Ingress Protection	Circuit	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Type	Actuator Marking	Switch Function	Mechanical Life
RAFI USA 1.15114.0061002	Clear	100 mA	Panel Mount, Front	70 °C	-25 °C	Connector	42 V	IP65 - Dust Tight, Water Resistant	SPST-NO	Button, Square	42 V	16.1 mm	Illuminated, Standard	No Marking	Off-Mom
RAFI USA 1.15114.0061505	Clear	100 mA	Panel Mount, Front	70 °C	-25 °C	Connector	42 V	IP65 - Dust Tight, Water Resistant	SPST-NO	Button, Square	42 V	16.1 mm	Illuminated, Standard	No Marking	Off-Mom
RAFI USA 1.15114.9060000		100 mA	Panel Mount, Front	70 °C	-25 °C	Connector	35 V	IP65 - Dust Tight, Water Resistant	SPST-NO	Button, Square		16.1 mm	Illuminated, Standard	No Marking	Off-Mom	1000000 Cycles
RAFI USA 1.15114.9660000		100 mA	Panel Mount, Front	70 °C	-25 °C	Connector	35 V	IP65 - Dust Tight, Water Resistant	SPST-NO	Rectangular, Button		16.1 mm	Illuminated, Standard	No Marking	Off-Mom	1000000 Cycles
RAFI USA 1.15114.9360000		100 mA	Panel Mount, Front	70 °C	-25 °C	Connector	35 V	IP65 - Dust Tight, Water Resistant	SPST-NO	Button, Round		16.1 mm	Illuminated, Standard	No Marking	Off-Mom	1000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
