Description
General part information
0761455704

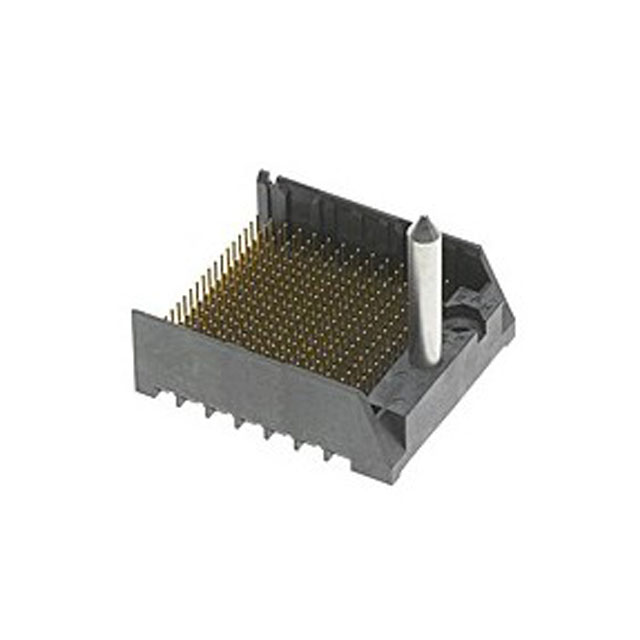

CONN HEADER IMPACT 252POS PCB
Technical Specifications
Parameters and characteristics for this part
| Specification | 0761455704 |
|---|---|
| Color | Black |
| Connector Style | Impact, Guide Right |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Differential Pairs (Typical) | 84 |
| Mounting Type | Through Hole |
| Number of Columns | 14 |
| Number of Positions | 252 |
| Number of Positions Loaded | All |
| Number of Rows | 18 |
| Pitch | 0.053 in |
| Termination | Press-Fit |
