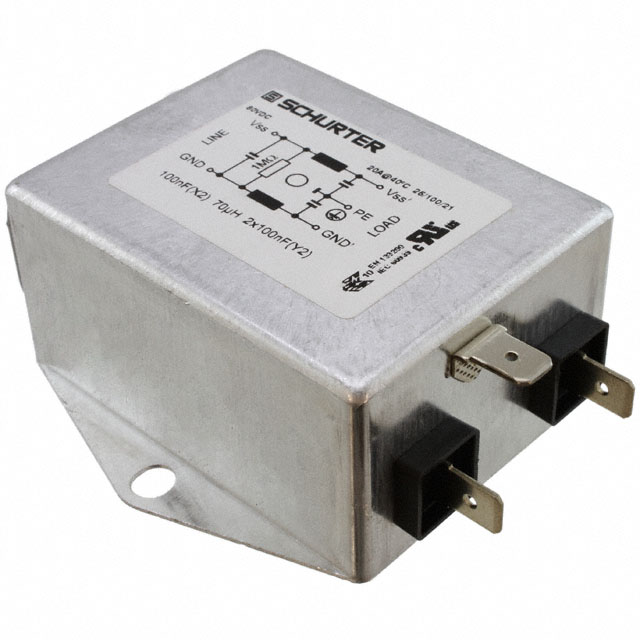

5500.2226
ActiveSCHURTER Inc.
LINE FILTER 43V/80VDC 20A CHASS
5500.2226
ActiveSCHURTER Inc.
LINE FILTER 43V/80VDC 20A CHASS
Description
General part information
5500.2226
DC EMC/EMI Line Filter 20 A 43V, 80V Single Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 5500.2226 |
|---|---|
| Applications | General Purpose |
| Approval Agency | CE, UKCA, cURus, ENEC, VDE |
| Configuration | Single Stage |
| Current | 20 A |
| Filter Type | DC |
| Inductance | 70 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC (Option 1) | 43 V |
| Voltage - Rated DC (Option 2) | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
