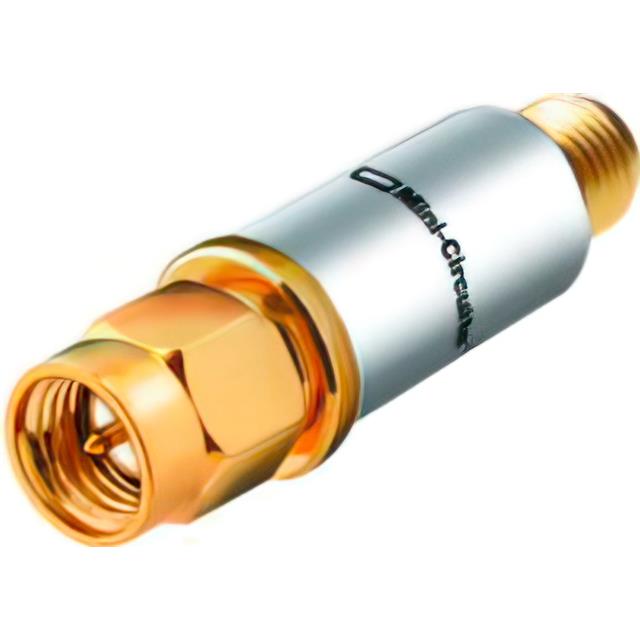

VHF-3500+
ObsoleteMini-Circuits
RF FILTER HIGH PASS 3.5GHZ SMA
VHF-3500+
ObsoleteMini-Circuits
RF FILTER HIGH PASS 3.5GHZ SMA
Description
General part information
VHF-3500+
3.5GHz (Cutoff) Frequency High Pass RF Filter (Radio Frequency) 5.6GHz Bandwidth 2dB SMA In line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | VHF-3500+ |
|---|---|
| Bandwidth | 5.6 GHz |
| Filter Type | High Pass |
| Frequency | 3.5 GHz |
| Insertion Loss | 2 dB |
| Mounting Type | Chassis Mount |
| Package / Case | SMA In line Module |
| Size / Dimension Diameter | 0.41 in |
| Size / Dimension Length | 0.41 in |
