P0770.152NL
ActivePulse Electronics
FIXED IND 1.5UH 2.6A 50 MOHM SMD
P0770.152NL
ActivePulse Electronics
FIXED IND 1.5UH 2.6A 50 MOHM SMD
Description
General part information
P0770.152NL

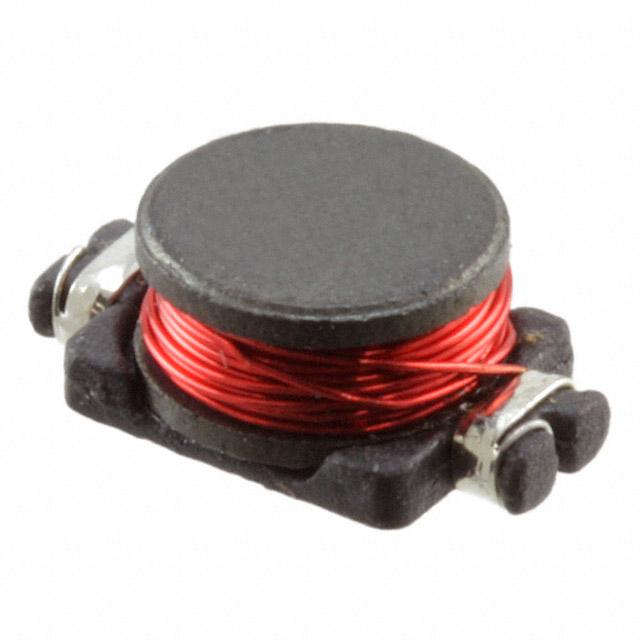

1.5 µH Unshielded Wirewound Inductor 2.6 A 50mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | P0770.152NL |
|---|---|
| Current - Saturation (Isat) | 2.6 A |
| Current Rating | 2.6 A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Height - Seated (Max) | 0.115 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.26 in |
| Size / Dimension Width | 0.175 in |
| Tolerance | 20 % |
| Type | Wirewound |
