1069A 0107500

Active

Belden Inc.

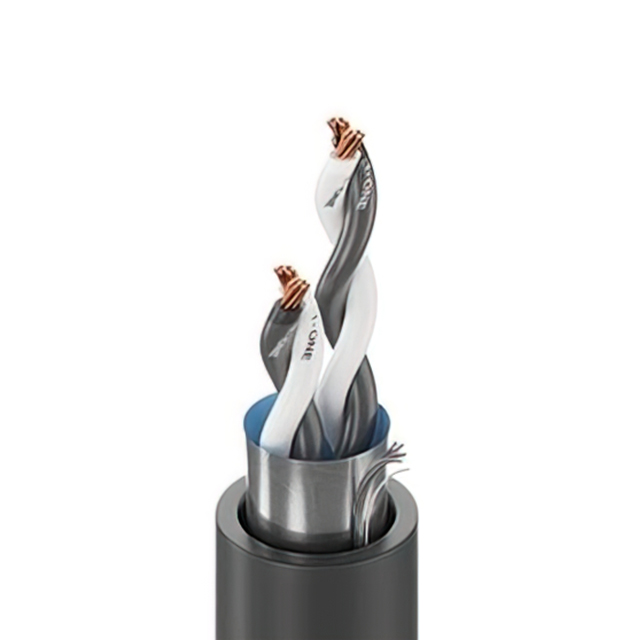

MULTI-PAIR 4COND 16AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 16AWG BLK

Technical Specifications

Parameters and characteristics for this part

Specification	1069A 0107500

Cable Type	Multi-Pair
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	24
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.42 in
Jacket (Insulation) Diameter [diameter]	10.67 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Black
Length [x]	7500 ft
Length [x]	2286 m
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	16 AWG

MULTI-PAIR 4COND 16AWG BLK

Part	Wire Gauge	Shield Type	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Shield Material	Shield Coverage	Conductor Insulation	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Material	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 1069A 0107500	16 AWG	Foil	Drain Wire, Rip Cord	0.42 in	10.67 mm	Copper, Bare	Aluminum	100 %	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	4	7500 ft	2286 m	Poly-Vinyl Chloride (PVC)	Multi-Pair	0.048 in	1.219 mm	Black	7	24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	7500	$ 2.67

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Black 16 AWG Foil 7500' (2286.0m)
