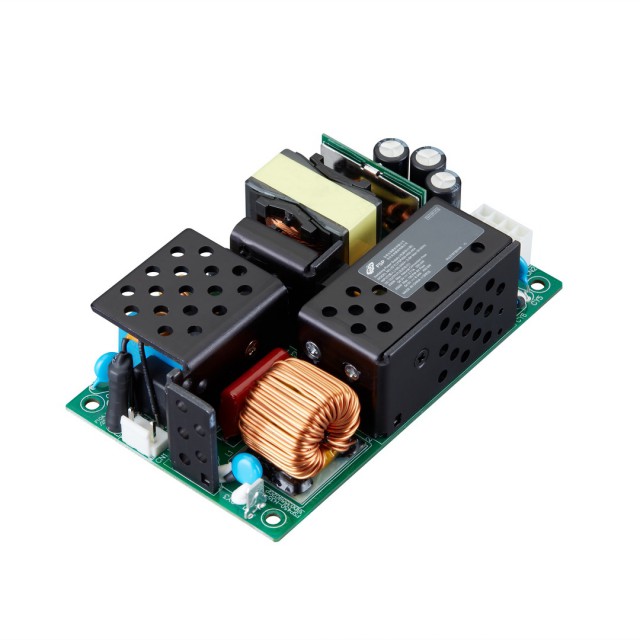

FSP450-H35-A54
ActiveFSP Technology Inc.
AC/DC CONVERTER 54V 200W
FSP450-H35-A54
ActiveFSP Technology Inc.
AC/DC CONVERTER 54V 200W
Description
General part information
FSP450-H35-A54
Open Frame AC DC Converters 1 Output 54V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP450-H35-A54 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cCSAus |
| Current - Output 1 | 8.33 A |
| Features | Universal Input, PFC |
| Number of Outputs | 1 |
| Operating Temperature | 50 °C |
| Power (Watts) | 450 W, 200 W |
| Size / Dimension Height | 1.4 in |
| Size / Dimension Length | 5 in |
| Size / Dimension Width | 3 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 54 V |
