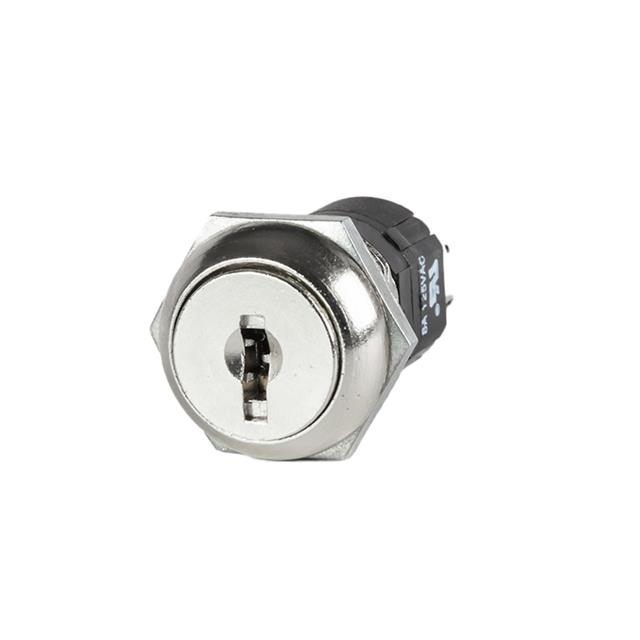

K1-201S1S1N2 01
ActiveOslo Switch
SWITCH KEYLOCK 3POS DP3T 8A 125V
K1-201S1S1N2 01
ActiveOslo Switch
SWITCH KEYLOCK 3POS DP3T 8A 125V
Description
General part information
K1-201S1S1N2 01
Keylock Switch 3 Position DP3T 8A (AC/DC) 125 VAC 28 VDC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | K1-201S1S1N2 01 |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 90 ° |
| Circuit | DP3T |
| Contact Finish | Silver |
| Contact Material | Copper |
| Current Rating | 8 A |
| Depth Behind Flange | 30.1 mm |
| Electrical Life (Cycles) | 10000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Panel Cutout Diameter | 19.18 mm |
| Panel Cutout Shape | Circular |
| Removable Positions Count | 1 |
| Switch Function | On-On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
