CN-DSUBHD78SK-000

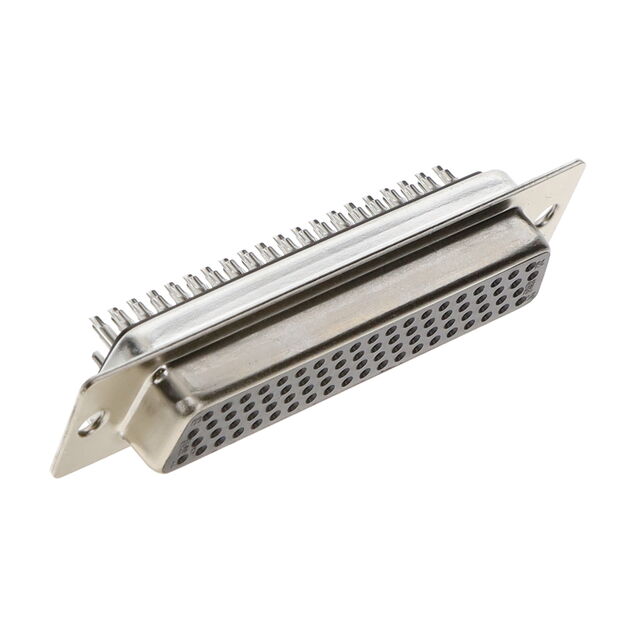

78 Position D-Sub, High Density Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | CN-DSUBHD78SK-000 |
|---|---|
| Color | Black |
| Connector Layout | D, DD, High Density |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Type | Signal |
| Current Rating | 1 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Finish | Nickel Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 78 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 5 |
| Termination | Solder Cup |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
