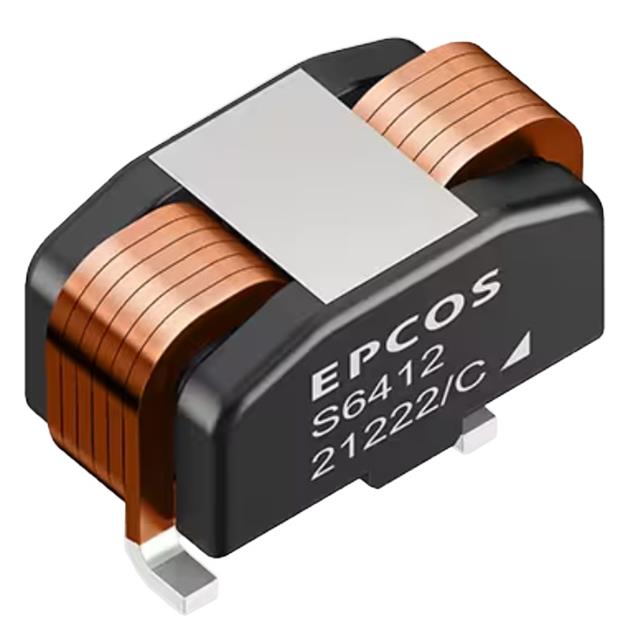

ERUC23-3R2K
ActiveEPCOS - TDK Electronics
SMT FLAT WIRE COUPLED INDUCTOR,
ERUC23-3R2K
ActiveEPCOS - TDK Electronics
SMT FLAT WIRE COUPLED INDUCTOR,
Description
General part information
ERUC23-3R2K
Unshielded 2 Coil Inductor Array Inductance - Connected in Series 5.9 µH Inductance - Connected in Parallel DC Resistance (DCR) - Parallel Nonstandard, 4 Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ERUC23-3R2K |
|---|---|
| Current Saturation - Parallel | 57.5 A |
| Current Saturation - Series | 28.75 A |
| Height | 0.551 in |
| Inductance - Connected In Parallel | 5.9 µH |
| Mounting Type | Surface Mount |
| Number of Coils | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Lead, 4 Leads |
| Package Name | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 1.055 in |
| Size / Dimension Width | 0.543 in |
| Tolerance | 10 % |
