XS508B1DAL2
ActiveSCHNEIDER ELECTRIC

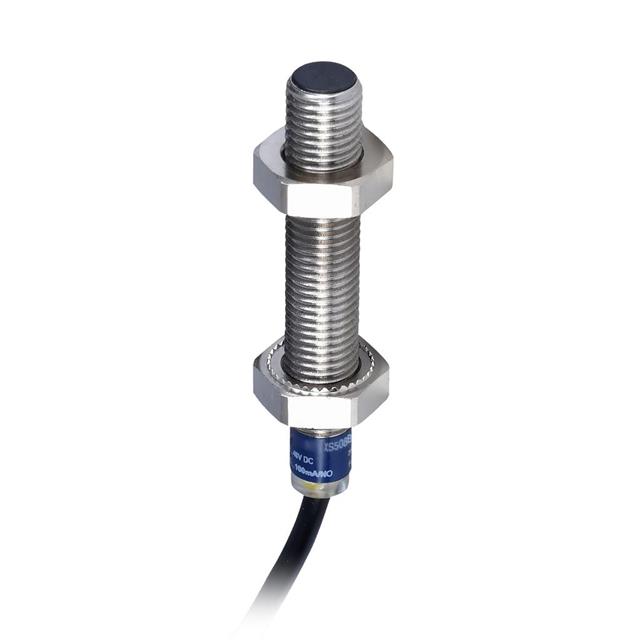

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 1.5 MM, NO, 12 V TO 48 V, PRE-WIRED
XS508B1DAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M8, 1.5 MM, NO, 12 V TO 48 V, PRE-WIRED
Description
General part information
XS508B1DAL2
Inductive Proximity Sensor 0.059" (1.5mm) IP67 Cylinder, Threaded - M8
Technical Specifications
Parameters and characteristics for this part
| Specification | XS508B1DAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.059 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
