C&P9F
ActivePasternack

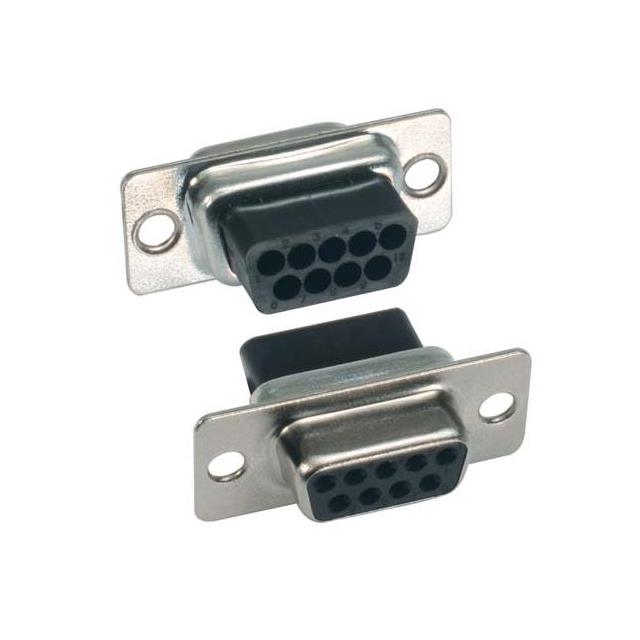

D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, C&PF SERIES, RECEPTACLE, STEEL BODY
C&P9F
ActivePasternack
D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, C&PF SERIES, RECEPTACLE, STEEL BODY
Description
General part information
C&P9F
Receptacle, Female Sockets Housing D-Sub Connector 9 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | C&P9F |
|---|---|
| Connector Layout | DE, E |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Type | Signal |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT) |
| Finish | Tin-Nickel Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 1 |
