2232723-1
ActiveTE Connectivity AMP Connectors

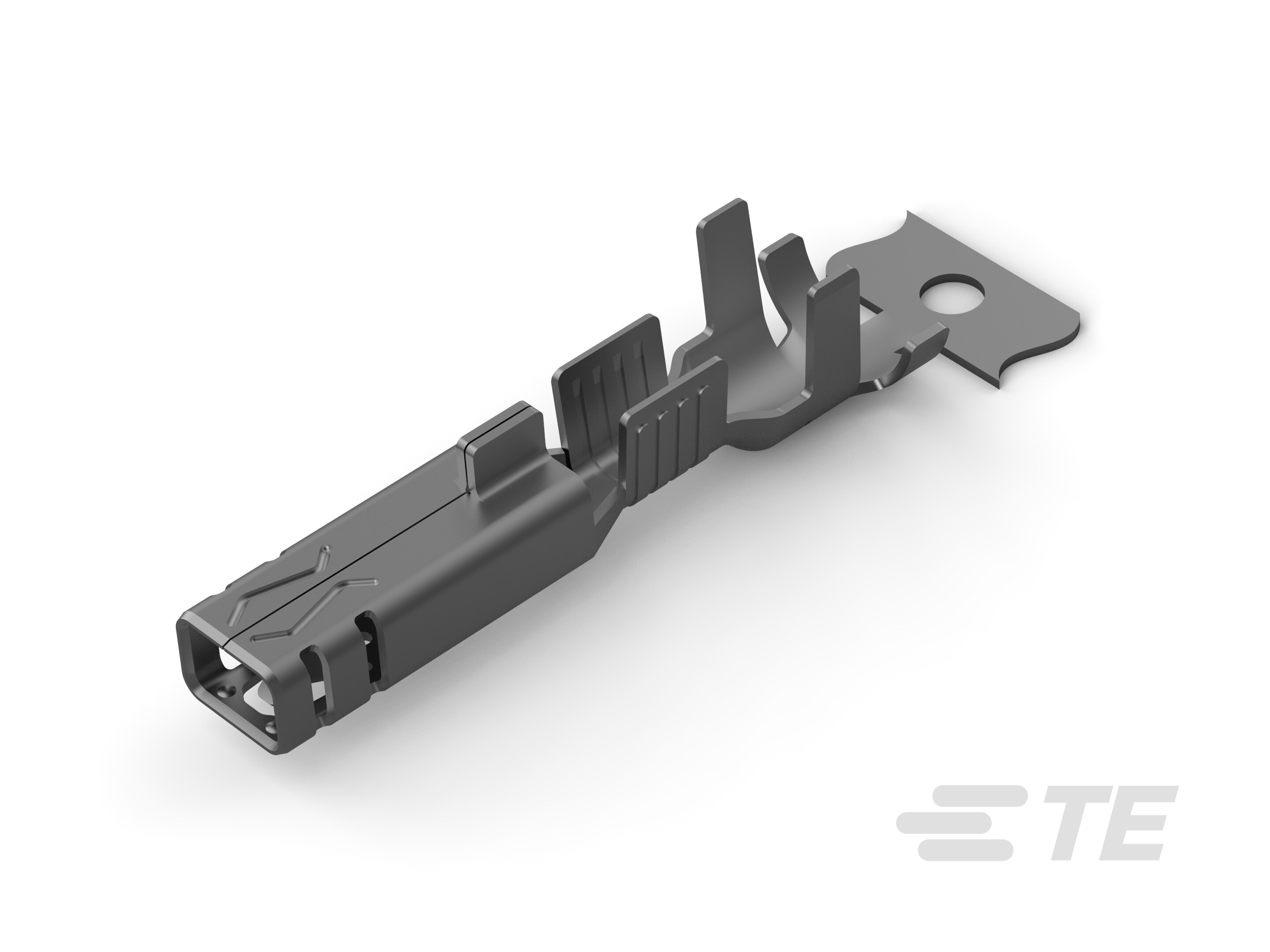

PTL MFBL RECPT CONTACT, 16-19 AWG, 2X22
2232723-1
ActiveTE Connectivity AMP Connectors
PTL MFBL RECPT CONTACT, 16-19 AWG, 2X22
Description
General part information
2232723-1
Receptacle Contact, Tin (Sn), 600 VAC, 19 – 16 AWG, .65 – 1.31 mm² Wire, 1200 – 2600 CMA, Crimp, Phosphor Bronze, Power, Power Triple Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 2232723-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
ENG_CD_2232723_B.pdf
Make First, Break Last Power Triple Lock Connector
3P, MFBL, Power Triple Lock
Application Specification - POWER TRIPLE LOCK* Connector System
Datasheet
3 POSITION MAKE FIRST BREAK LAST (MFBL) POWER TRIPLE LOCK WIRE TO WIRE CONNECTORS
Power Triple Lock (PTL) Make First/Break Last (MFBL) Connector System
2232723-1 | Datasheet
